ProAm 934 Midboard Hub Kits

ProAm Racing

$5,795.00
SKU: PRM-934SRMBH-LW4P

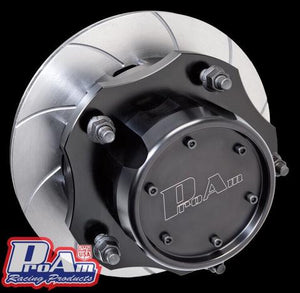

ProAm 934 Mid-Board Hub kits

  • 5 on 205mm VW Pattern
  • Installed 33 spline or 35 Spline CV Joints > German CV - modified to ProAm specification.
  • 300M ProAm Cages
  • 14mm x 1.5 press in studs / ProAm Race Series Exclusive Studs
  • Standard issue "Ball Seat" lugs for most cast & forged aluminum wheels
  • Triple Sealed
  • ProAm "Mid-Board" hub kits come with a brilliant premium black finish, adding a layer of protection that decreases wear and corrosion. ProAm labeled center cap
  • **MADE IN USA**
  • >EXPLODED VIEW<   >TORQUE SPECS<

Stage 1 Light Weight: 12" x .375"  lightweight rotor package with ProAm "4993RN" Series 4-Piston calipers & 4" pads. Designed for current class 5, 10 configurations - up to 35" inch Tire (15" wheel setup)

Stage 2 Light Weight: 12" x .375"  lightweight rotor package with ProAm "6993N" Series 6-Piston calipers & 6" pads. Designed for current class 5, 10 configurations - up to 35" inch Tire (15" wheel setup)

Stage 312" x .750" rotor package with ProAm "6993R" Series 6-Piston calipers & 6" pads. Designed for heavy class 5, 10 configurations - up to 35" inch Tire (15" wheel setup)

Stage 4 RGR13" x .750" rotor package with ProAm "6993RGR" Series 6-Piston calipers & 6" pads. Designed for large V8 buggy prerunners, and current class 1 configurations - up to 37" inch Tire (17" wheel minimum)

Stage 5-HD14" x 1.25" rotor package with ProAm "9996R" Series 6-Piston calipers & pads. Designed for large V8 buggy prerunners, and current class 1 configurations who demand the best brake package available - up to 37" inch Tire - (17" wheel minimum)  **NEW CALIPER PACKAGE IN PROCESS FOR END OF 2017**

All Configuration Kits include; 2x Hubs completely assembled with all hardware needed, CV Joints Installed, 2x Calipers outfitted with "B" series pads. **ARM WELD FLANGES SOLD SEPARATELY**

>> Recommended limitations based on strength of Drivetrain <<
