Wilwood 140-15381-R | Front TX6R Big Brake Kit | 2014-2018 Ram 2500/3500


$2,543.70 $2,589.94
SKU: 140-15381-R

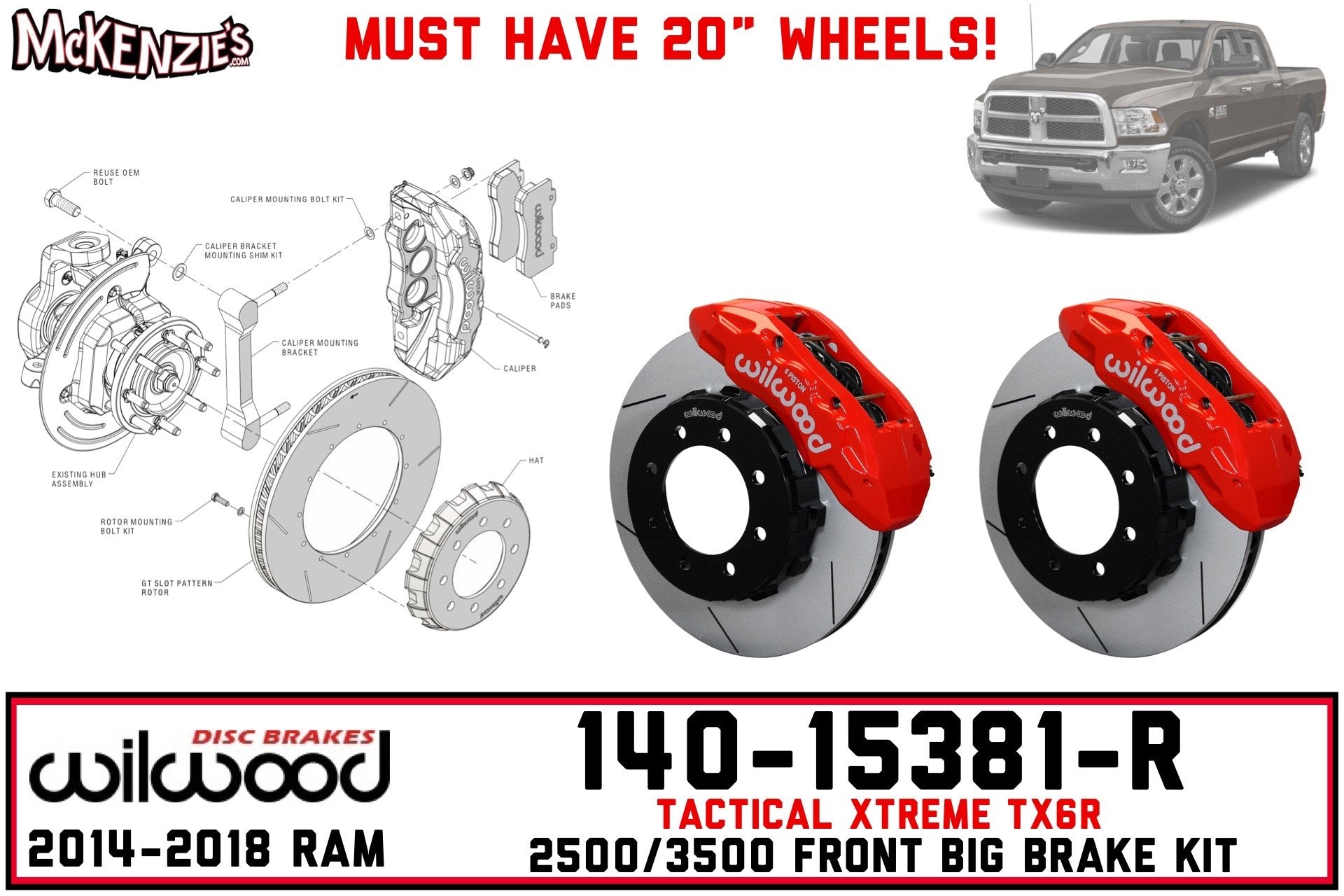

TX6R Big Brake Truck Front Brake Kit for RAM 2014-2018 RAM 2500/3500 2WD & 4WD Trucks. This kit requires the use of 20" Wheels, Please confirm wheel clearance diagram <HERE>

SKU: 140-15381-R

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Kits are fully compatible with the OE master cylinder output, ABS system, all electronic controls and the rear OE parking brake. Each kit includes premium-grade hardware, stainless steel DOT approved flexlines and a detailed installation guide.

Kit Features:

  • Huge Forged Radial Mount 6-Piston TX6R Calipers
  • 16" x 1.50" GT60 Curved Vane Rotors
  • Premium Aluminum Rotor Hats
  • BP-20 Brake pad compound

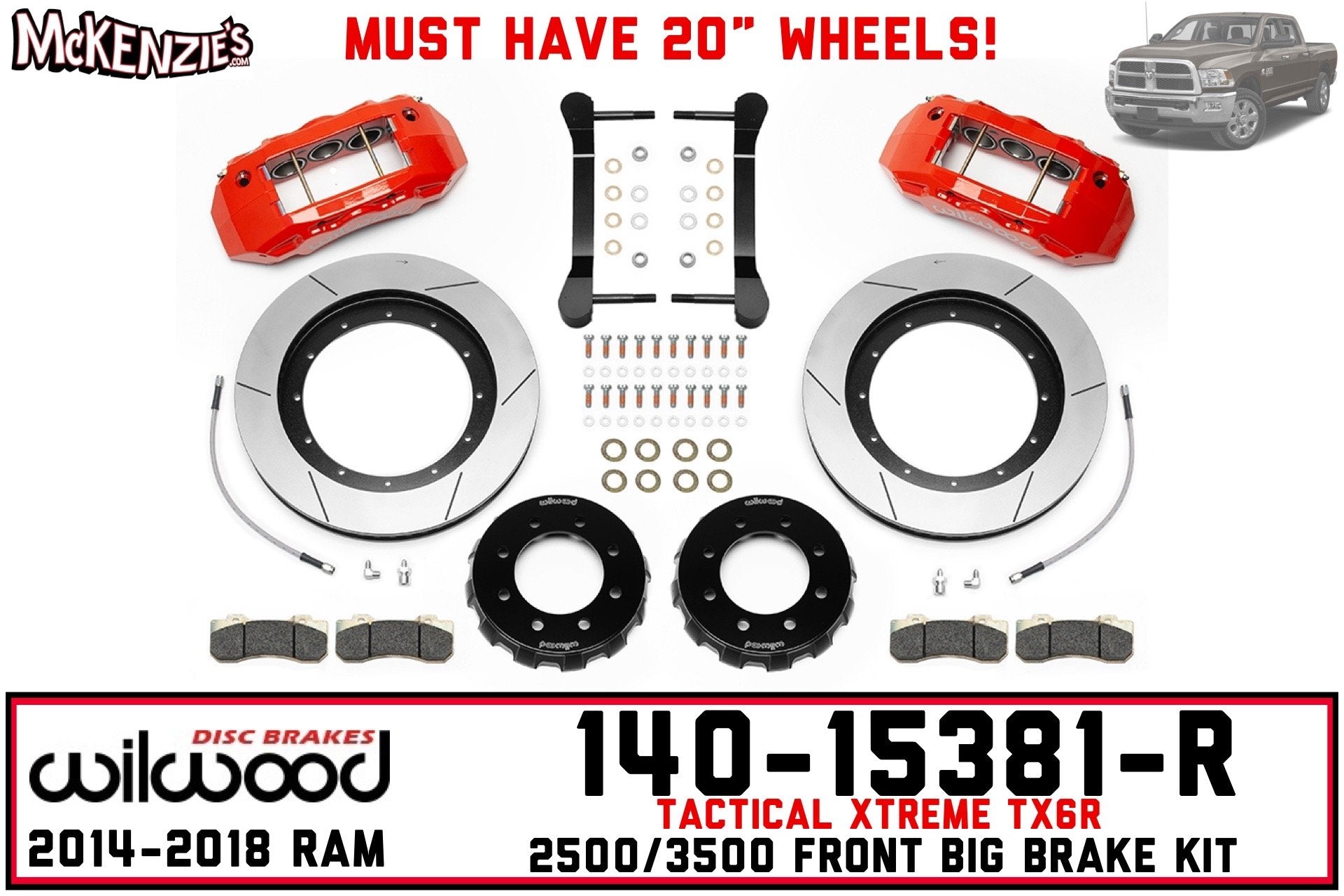

Kit Includes:

  • L/H Caliper: 120-13814-RD
  • R/H Caliper: 120-13813-RD
  • 2x Caliper Radial Mounts
  • Brake Pads: 150-13773K (BP-20 Compound)
  • L/H Rotor: 160-13788-GTB
  • R/H Rotor: 160-13787-GTB
  • 2x Rotor Hats: 170-15383
  • Brake Line Kit: 220-15672
  • Hardware

 Installation Instructions
