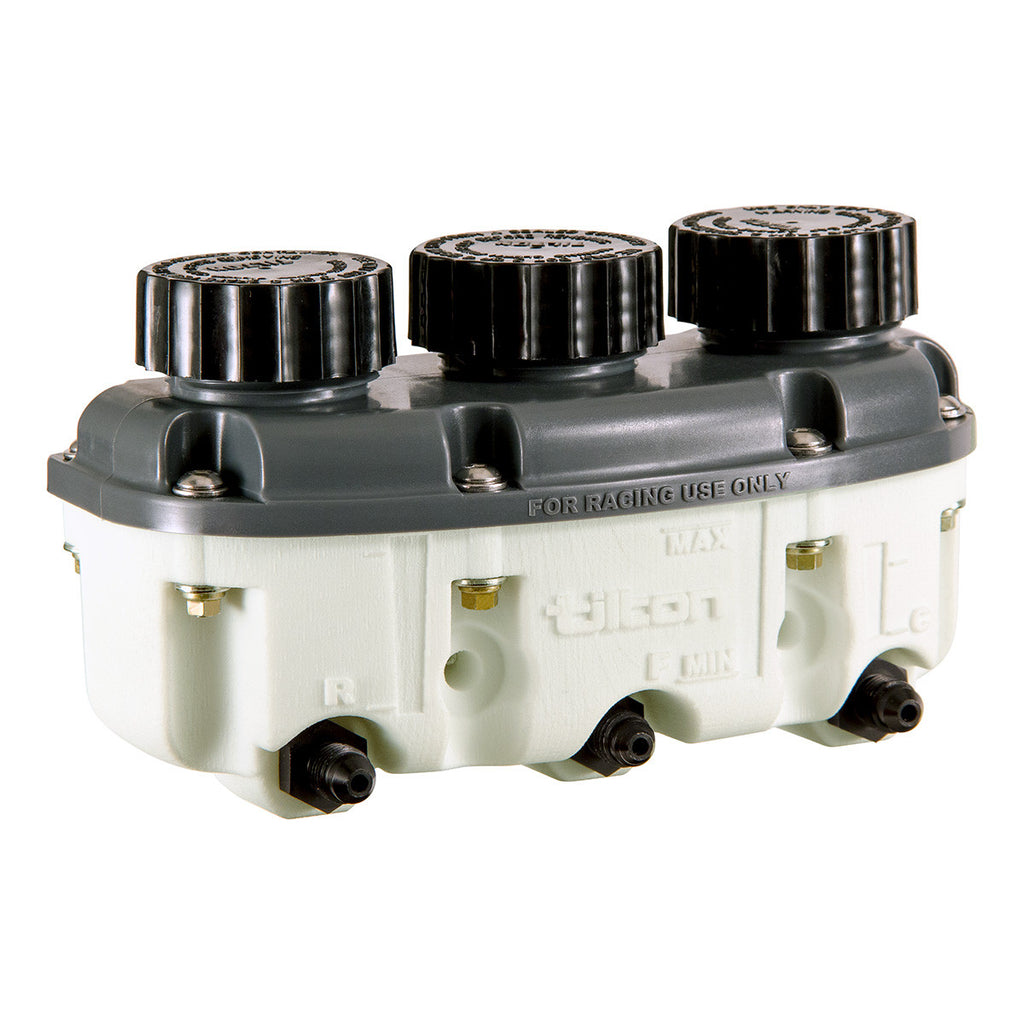

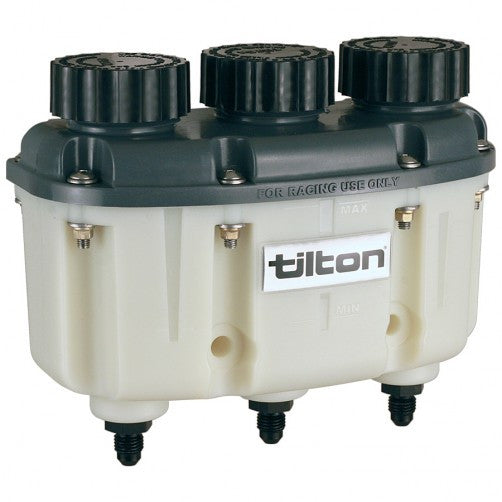

Tilton 3-Chamber Plastic Reservoirs - Standard & Low Profile

Tilton

$135.15
SKU: 72-577

Tilton’s popular 3-chamber plastic reservoir is value-packed, incorporating many features found in the billet aluminum version at a price that meets most budgets. There is no longer a reason to use three separate plastic reservoirs–this reservoir combines the three into one convenient package.

3-Chamber Plastic Reservoir Features

  • Fiberglass reinforced nylon material.
  • Three separate internal reservoirs allow for complete evacuation of one without affecting the remaining two.
  • Gasket-sealed removable lid allows for easy cleaning.
  • Reservoir lid incorporates screens to prevent foreign objects (nuts, bolts, etc.) from falling into reservoir.
  • Leak-proof baffle design ensures that fluid remains in reservoir.
  • Convenient fluid level indicator windows.
  • 2-hole mount provides simple installation onto firewall/bulkhead.
  • AN-4 fittings for use with AN-4 braided lines

3-Chamber Plastic Low Profile Reservoir Features

A shorter version, the 3-chamber low profile plastic reservoir is designed to fit in applications where space and/or height are limited.

  • Fiberglass reinforced nylon material
  • Three separate internal reservoirs allow for complete evacuation of one without affecting the remaining two
  • Gasket-sealed removable lid allows for easy cleaning
  • Reservoir lid features safety screens to prevent foreign objects (nuts, bolts) from falling into reservoir
  • Leak-proof baffle design ensures that fluid remains in reservoir
  • Convenient fluid level indicator windows on the reservoir body
  • 2-hole mount provides simple installation onto firewall/bulkhead
  • AN-4 fittings for use with AN-4 braided lines
