Setrab ProLine STD Fanpack Coolers

Setrab

$234.99
SKU: SET-FP119M22I

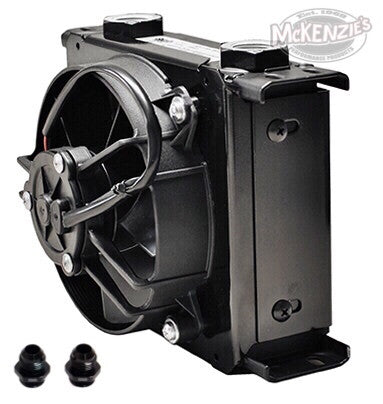

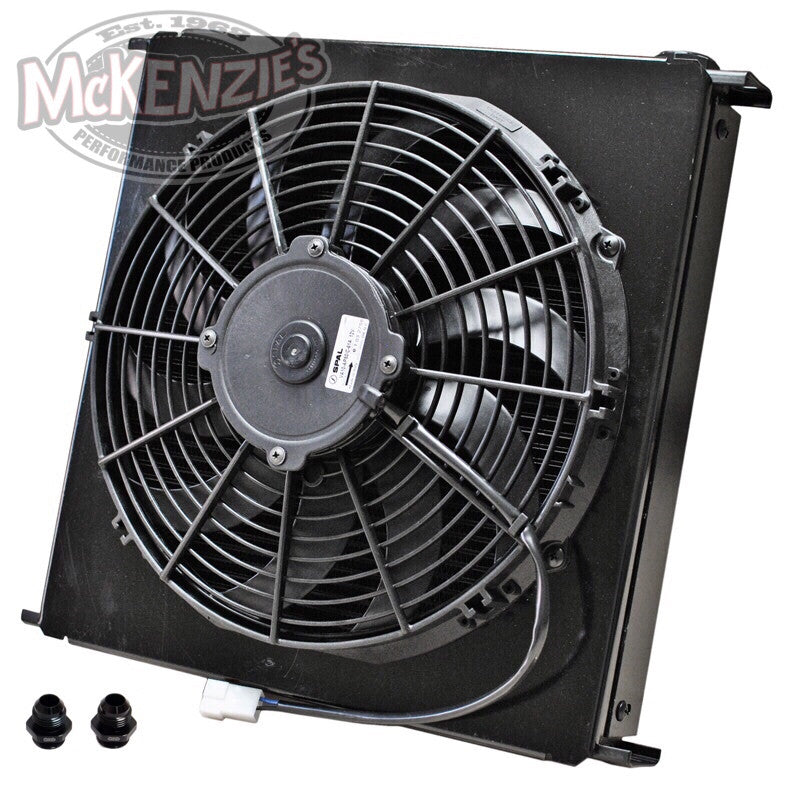

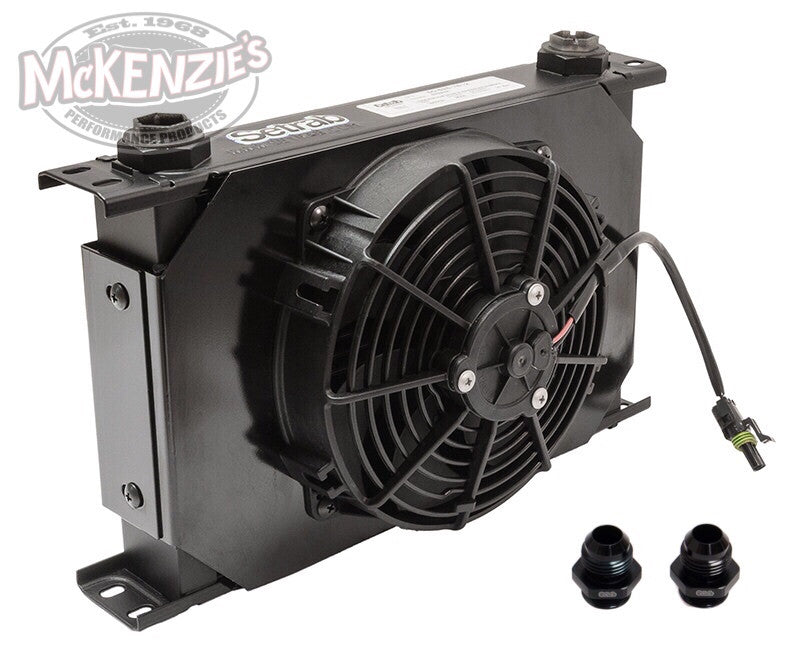

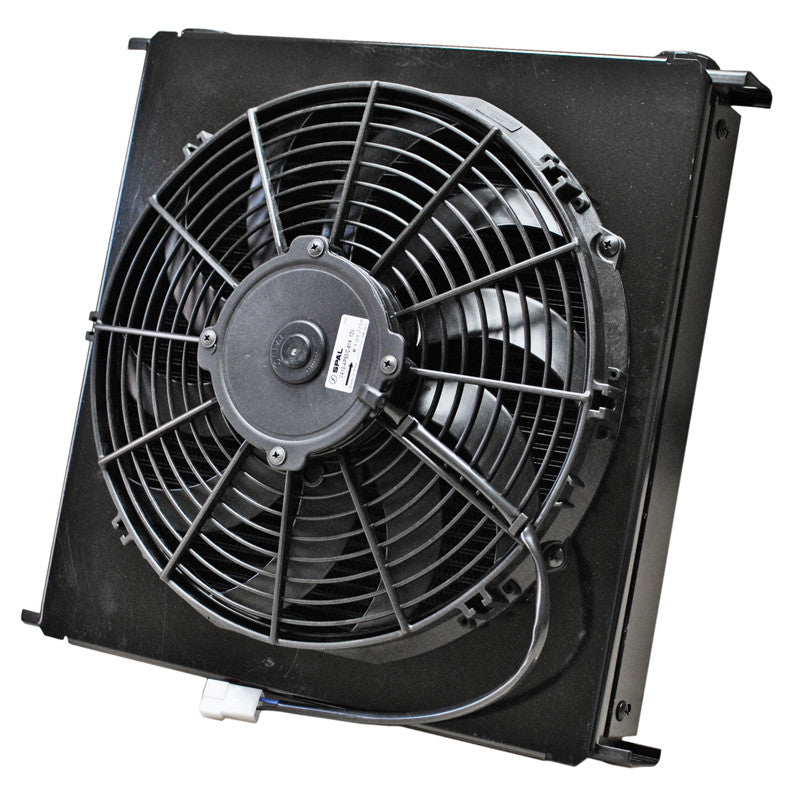

ProLine STD Fanpacks

Setrab ProLine STD Fanpacks combine the already high-performing and versatile heat exchange characteristics of the range of Setrab ProLine STD oil coolers with high-volume, low-profile fans and robust fan shrouds to create a cooling package that is unparalleled in performance and versatility.

Fanpacks

Part Number A B C D E F Vol. (qt.) Wt. (lb.) ∆P (psi) btu/hr range Fan CFM

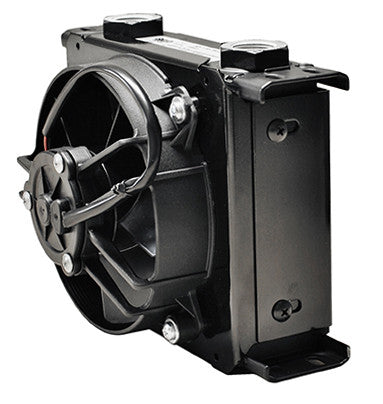

FP119M22I 6.50 5.75 4.80 7.48 8.27 5.50 0.22 3.55 2.2/2.6 13,000-17,500 12V, 342cfm

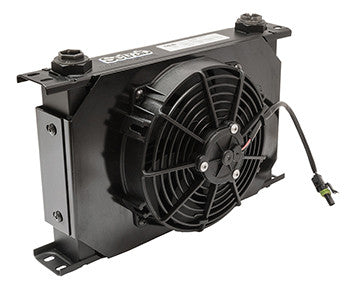

FP625M22i 11.38 7.60 9.53 12.20 12.99 4.38 0.55 5.85 2.0/2.5 33,100-46,000 12V, 331cfm
FP634M22i 11.38 10.25 9.53 12.20 12.99 4.38 0.75 8.95 1.7/2.2 43,000-59,000 12V, 708cfm

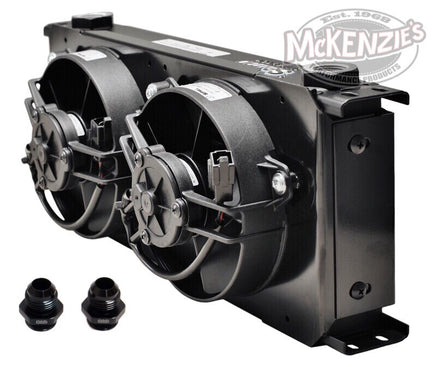

FP920M22i 14.50 6.00 12.48 15.16 15.94 5.50 0.55 7.20 3.0/4.2 35,000-50,000 2x 12V, 684cfm
FP948M22i 14.50 15.13 12.48 15.16 15.94 4.75 1.43 15.15 1.8/3.1 69,000-96,000 12V, 1226cfm
