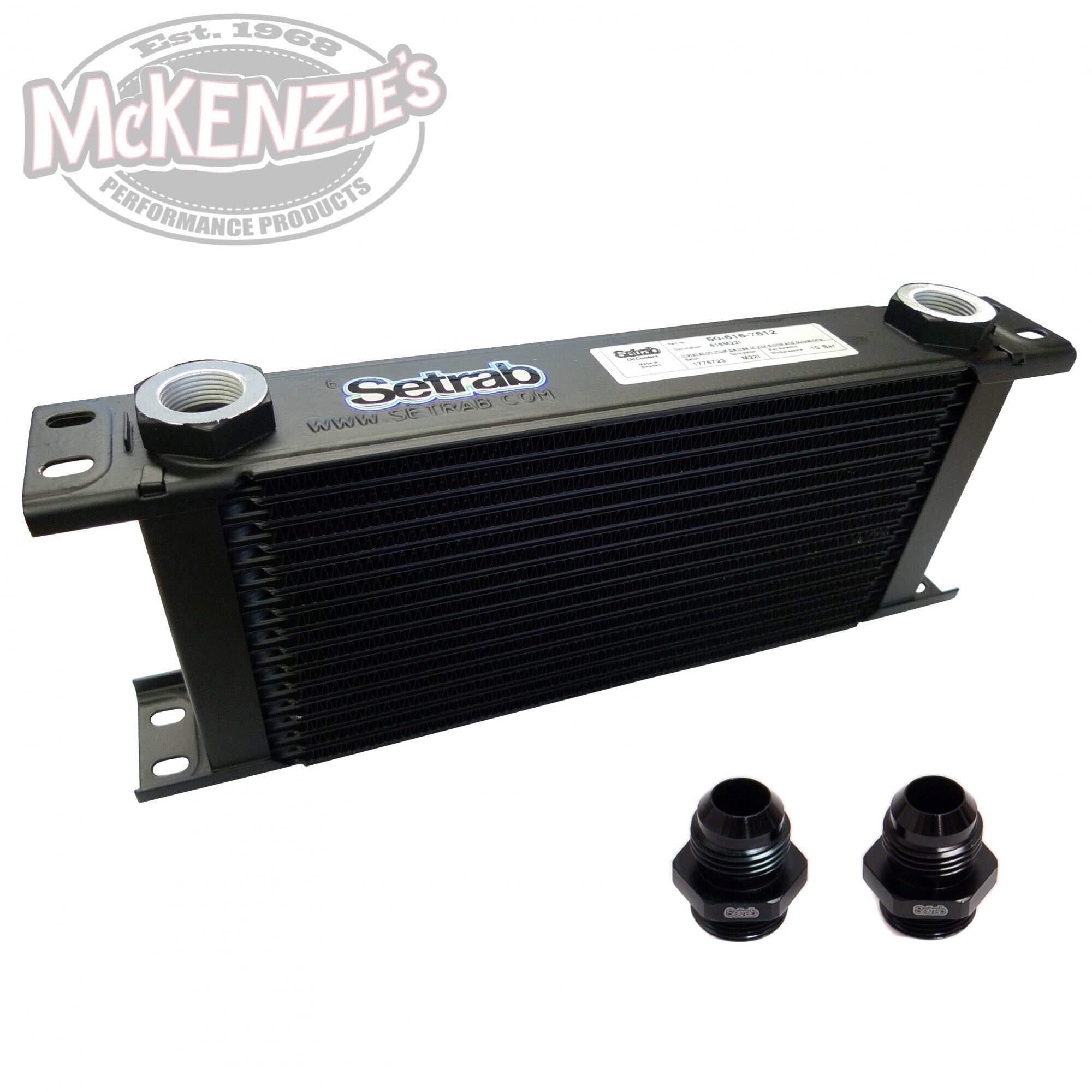

Setrab 6-series ProLine STD Oil Coolers

Setrab

$149.99
SKU: SET-613

ProLine STD Range

Setrab ProLine STD range oil coolers are the most flexible high-performance oil coolers on the market. The ProLine STD series integrates low-profile 22mm female ports for adaptability to any system using ProLine adapter fittings.

The stacked-plate style of Setrab's STD range offers the advantage of many height possibilities within the various series' widths. In addition, this technique coupled with state-of-the-art brazing technology makes for a durable, highly-efficient, and beautifully simplistic design that is often imitated but never replicated.

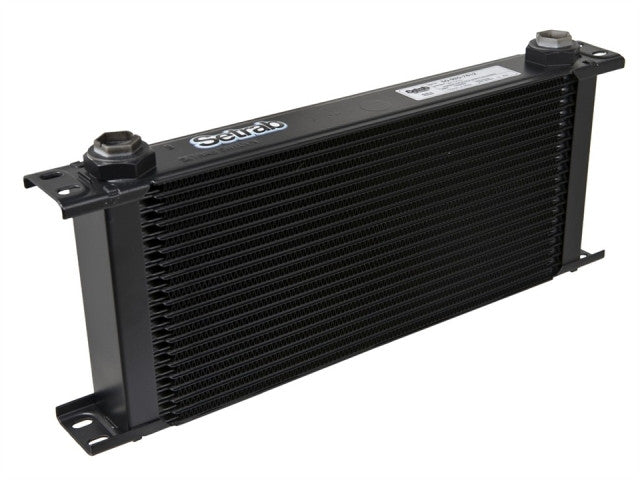

6-series Setrab ProLine STD Oil Coolers

HP range Part Number A B C D E Vol. (qt.) Wt. (lb.) ∆P (psi) btu/hr range
170-200 50-613-7612 11.14 3.94 9.53 12.20 12.99 0.25 1.90 4.0/4.5 19,000-26,000
220-310 50-619-7612 11.14 5.75 9.53 12.20 12.99 0.40 2.65 2.5/3.3 27,000-37,000
325-425 50-625-7612 11.14 7.60 9.53 12.20 12.99 0.55 3.40 2.0/2.5 33,100-46,000
400-475 50-634-7612 11.14 10.39 9.53 12.20 12.99 0.75 4.50 1.7/2.2 43,000-59,000
450-550 50-640-7612 11.14 12.20 9.53 12.20 12.99 0.90 5.30 1.6/2.1 45,000-67,000
600+ 50-650-7612 11.14 15.31 9.53 12.20 12.99 1.10 6.50 1.1/1.8 56,000-78,000
600+ 50-660-7612 11.14 18.31 9.53 12.20 12.99 1.30 7.75 1.0/1.7 63,000-90,000
