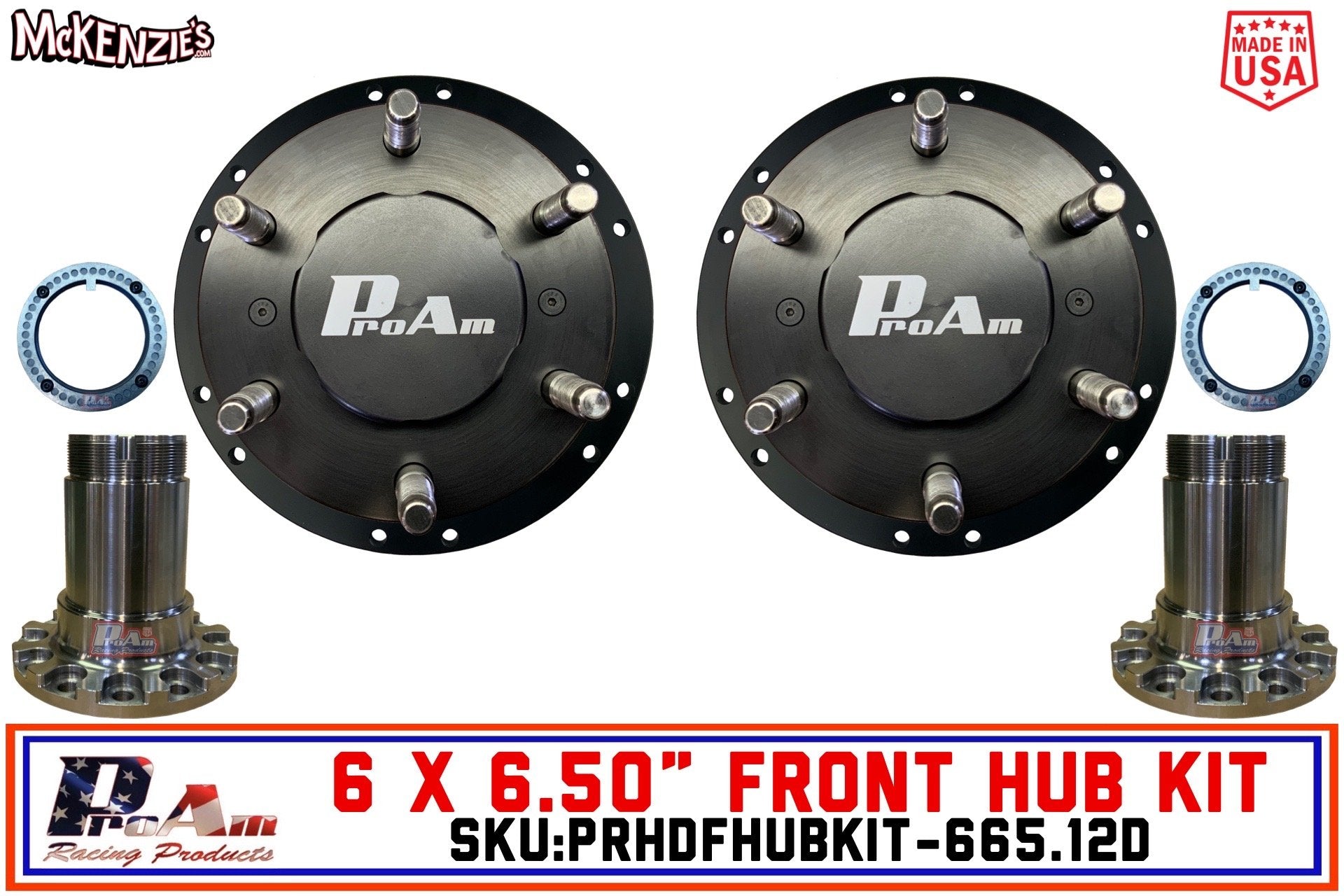

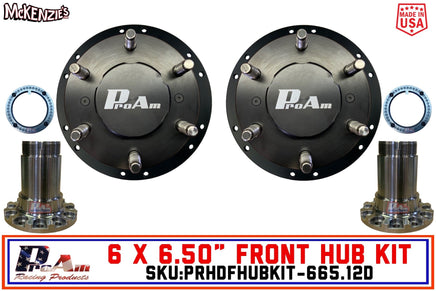

ProAm 6 on 6.50" HD Front Prerunner Truck Hubs | 12-Bolt DANA Snouts | IronMan Series

ProAm Racing

$2,895.00
SKU: IRM-PRHDFHUBKIT-665.12D

ProAm Racing IronMan Series HD Prerunner Truck Hubs. Built for Mild to Wild Prerunners, these Heavy Duty kits are designed for use on vehicles with a minimum 17" wheels on up to 40" tires.

SKU: IRM-PRHDFHUBKIT-665.12D

Kit Features:

Kit Includes:

  • IRM-PRHDFHUB665-1 (QTY 2x) | 6 on 6.50" Billet Hub
  • IRM-PRF/RHUB6XX-2 (QTY 2x) | Rotor Adapter Hat
  • IRM-PRF/RHUB-2a (QTY 12x) |Rotor Adapter Hardware
  • IRM-PRHDFHUB655-4 (QTY 2x) | 6 on 6.50" Front Hub Cap
  • IRM-PRF/RHUB-4a (QTY 2x) | 6 on 6.50" Front Hub Cap O-Ring
  • IRM-PRF/RHUB-4b (QTY 4x) | 6 on 6.50" Front Hub Cap 1/4-28x.625" FHCS
  • IRM-PRHDF/RHUB-7 (QTY 12x) | 5/8-18 PRM TT Spec Studs
  • IRM-PRF/RHUB-12 (QTY 2x) | 2.50" ID PRM Spec Crush Sleeves
  • BRG-L610510 (QTY 4x) | 2.50" ProAm Spec Bearing Race
  • BRG-L610549 (QTY 4x) | 2.50" ProAm Spec Bearing
  • BRG-29872 (QTY 2x) | 2.50" ProAm Spec Seal

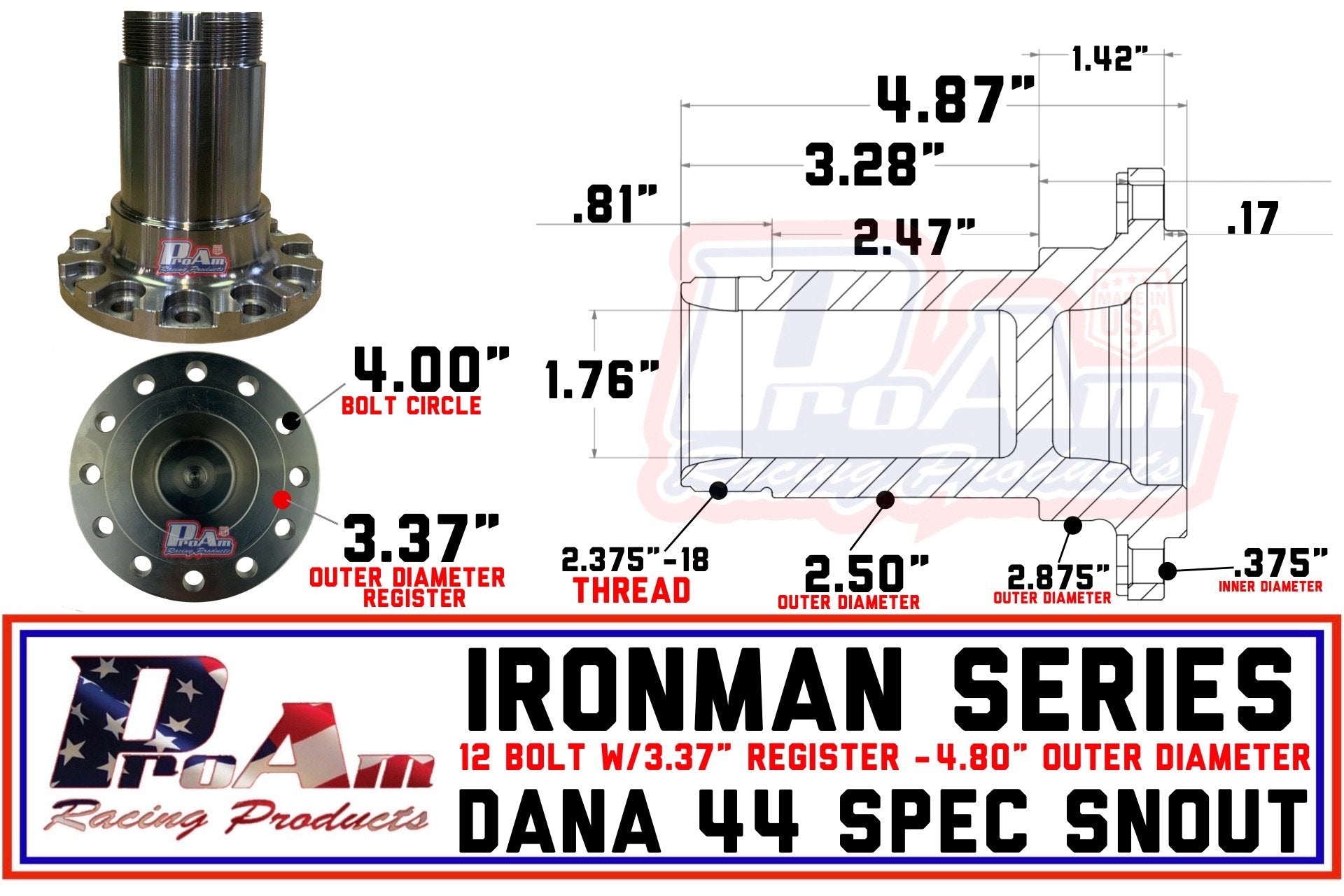

  • IRM-PRFS2500L-12D (QTY 1x) | 2.50" ProAm IronMan DANA Spec 12-bolt L/H Snout
  • PRM-TT2500SNLKIT (QTY 1x) | 2.50" ProAm L/H Snout Nut, Lock Washer kit
  • IRM-PRFS2500R-12D (QTY 1x) | 2.50" ProAm IronMan DANA Spec 12-bolt R/H Snout
  • PRM-TT2500SNRKIT (QTY 1x) | 2.50" ProAm R/H Snout Nut, Lock Washer kit

Brake Rotor Options (MINIMUM 17" WHEELS)

  • 13" x .810" Rotors - Gas Grooved, Vented ProAm Spec Rotors
  • 13.50" x 1.25" Rotors - HD Thick Plate, Vented ProAm Spec Rotors (17" CAST Wheel Package. These rotors clear the wheels when they bend!!)
  • 14.00" x 1.25" Rotors - Gas Grooved, Vented ProAm Spec Rotors (17" FORGED Wheel Package. Maximum Rotor OD for Maximum Brake Performance)
  • >COMPARISON BETWEEN HD & TT ROTOR HERE<

Stage Options
