ProAm 6 on 135mm HD Front Prerunner Truck Hubs | 12-Bolt DANA Snouts | IronMan Series

ProAm Racing

$3,095.00
SKU: IRM-PRHDFHUBKIT-6135.12D

Sorry, this item is out of stock

ProAm Racing IronMan Series HD Prerunner Truck Hubs. Built for Mild to Wild Prerunners, these Heavy Duty kits are designed for use on vehicles with a minimum 17" wheels on up to 40" tires.

SKU: IRM-PRHDFHUBKIT-6135.12D

Kit Features:

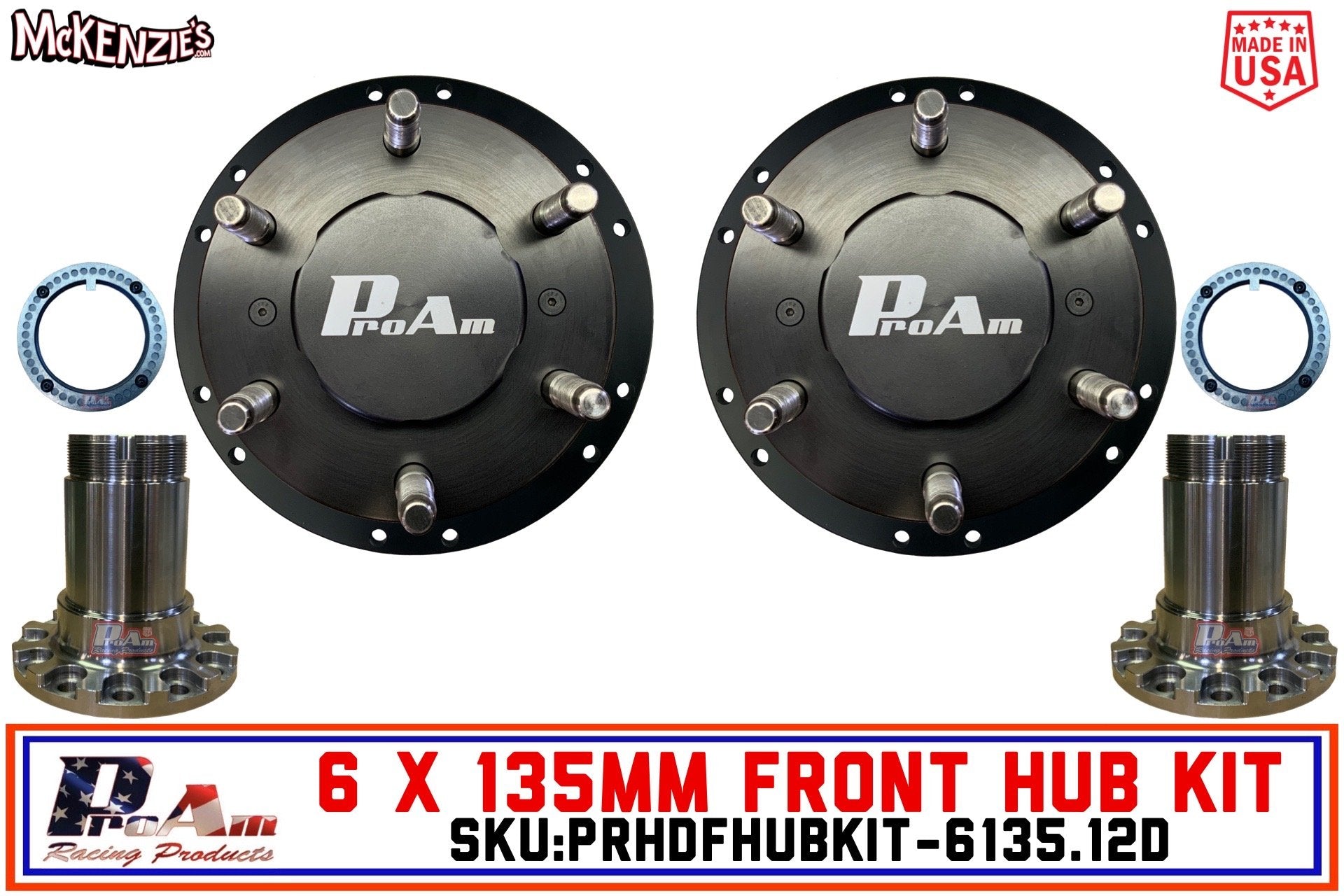

Kit Includes:

  • IRM-PRHDFHUB6135-1 (QTY 2x) | 6 on 135mm Billet Hub
  • IRM-PRF/RHUB6XX-2 (QTY 2x) | Rotor Adapter Hat
  • IRM-PRF/RHUB-2a (QTY 12x) |Rotor Adapter Hardware
  • IRM-PRHDFHUB6135-4 (QTY 2x) | 6 on 135mm Front Hub Cap
  • IRM-PRF/RHUB-4a (QTY 2x) | 6 on 135mm Front Hub Cap O-Ring
  • IRM-PRF/RHUB-4b (QTY 4x) | 6 on 135mm Front Hub Cap 1/4-28x.625" FHCS
  • IRM-PRHDF/RHUB-7 (QTY 12x) | 5/8-18 PRM TT Spec Studs
  • IRM-PRF/RHUB-12 (QTY 2x) | 2.50" ID PRM Spec Crush Sleeves
  • BRG-L610510 (QTY 4x) | 2.50" ProAm Spec Bearing Race
  • BRG-L610549 (QTY 4x) | 2.50" ProAm Spec Bearing
  • BRG-29872 (QTY 2x) | 2.50" ProAm Spec Seal

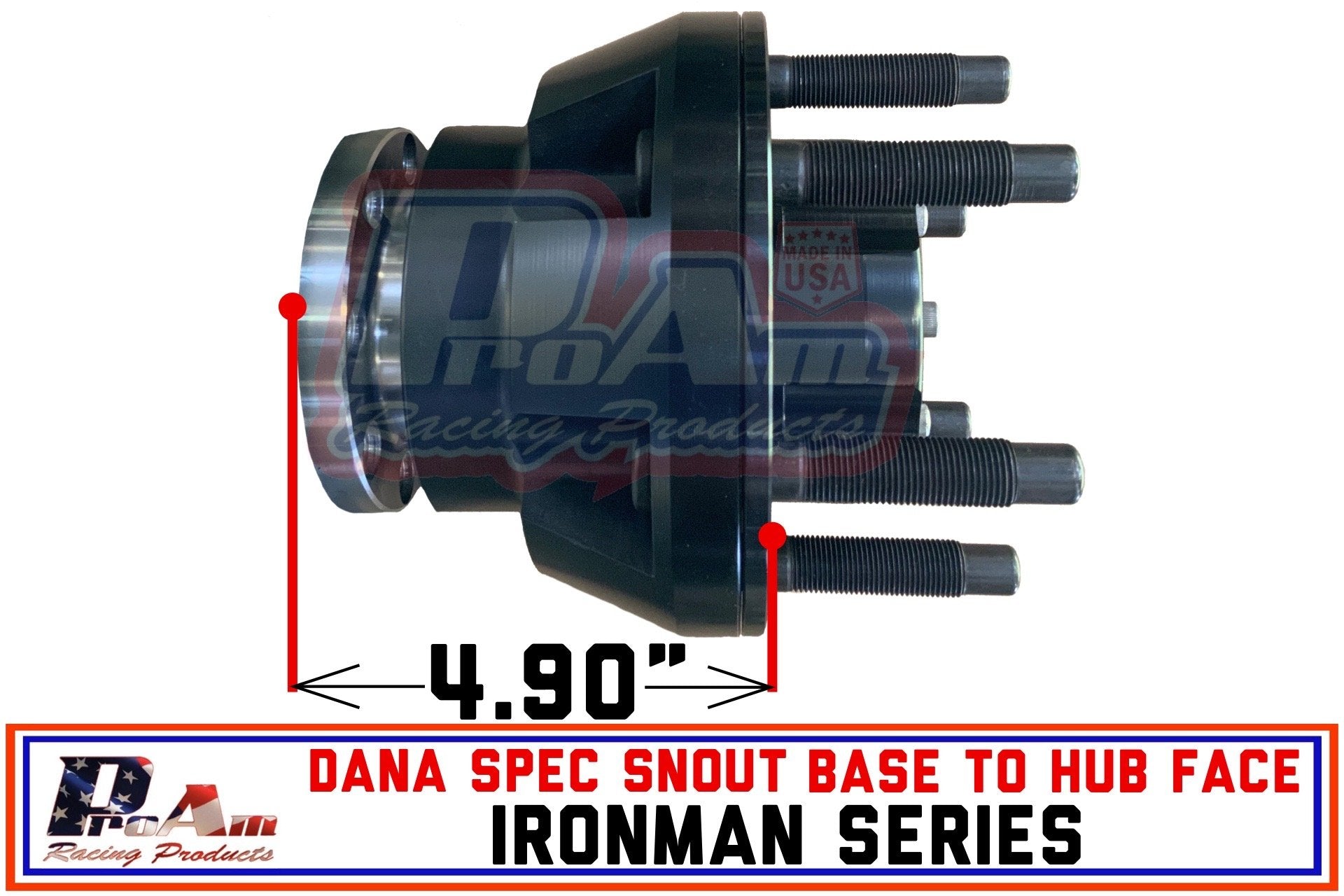

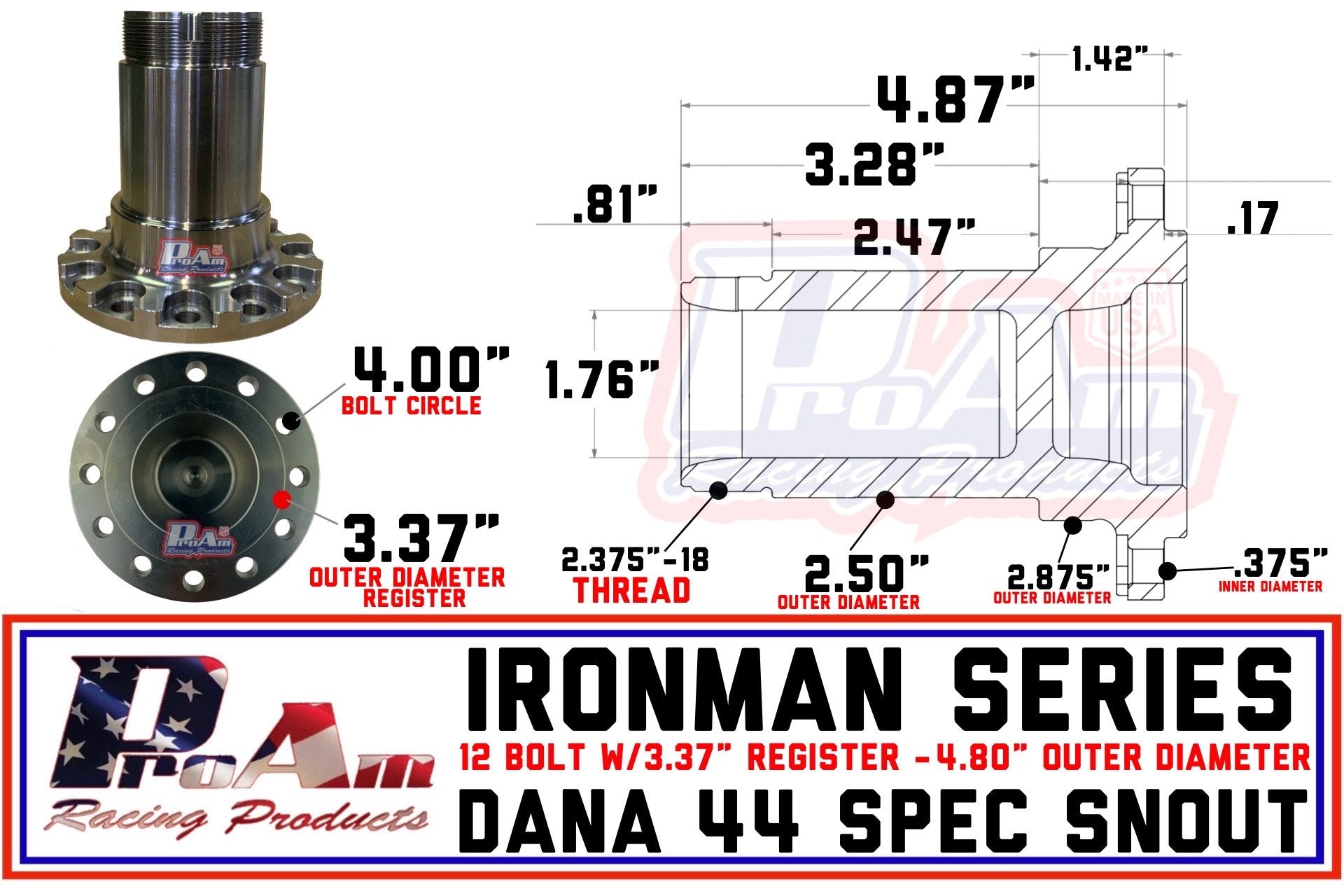

  • IRM-PRFS2500L-12D (QTY 1x) | 2.50" ProAm IronMan DANA Spec 12-bolt L/H Snout
  • PRM-TT2500SNLKIT (QTY 1x) | 2.50" ProAm L/H Snout Nut, Lock Washer kit
  • IRM-PRFS2500R-12D (QTY 1x) | 2.50" ProAm IronMan DANA Spec 12-bolt R/H Snout
  • PRM-TT2500SNRKIT (QTY 1x) | 2.50" ProAm R/H Snout Nut, Lock Washer kit

Brake Rotor Options (MINIMUM 17" WHEELS)

  • 13" x .810" Rotors - Gas Grooved, Vented ProAm Spec Rotors
  • 13.50" x 1.25" Rotors - HD Thick Plate, Vented ProAm Spec Rotors (17" CAST Wheel Package. These rotors clear the wheels when they bend!!)
  • 14.00" x 1.25" Rotors - Gas Grooved, Vented ProAm Spec Rotors (17" FORGED Wheel Package. Maximum Rotor OD for Maximum Brake Performance)
  • >COMPARISON BETWEEN HD & TT ROTOR HERE<

Stage Options
