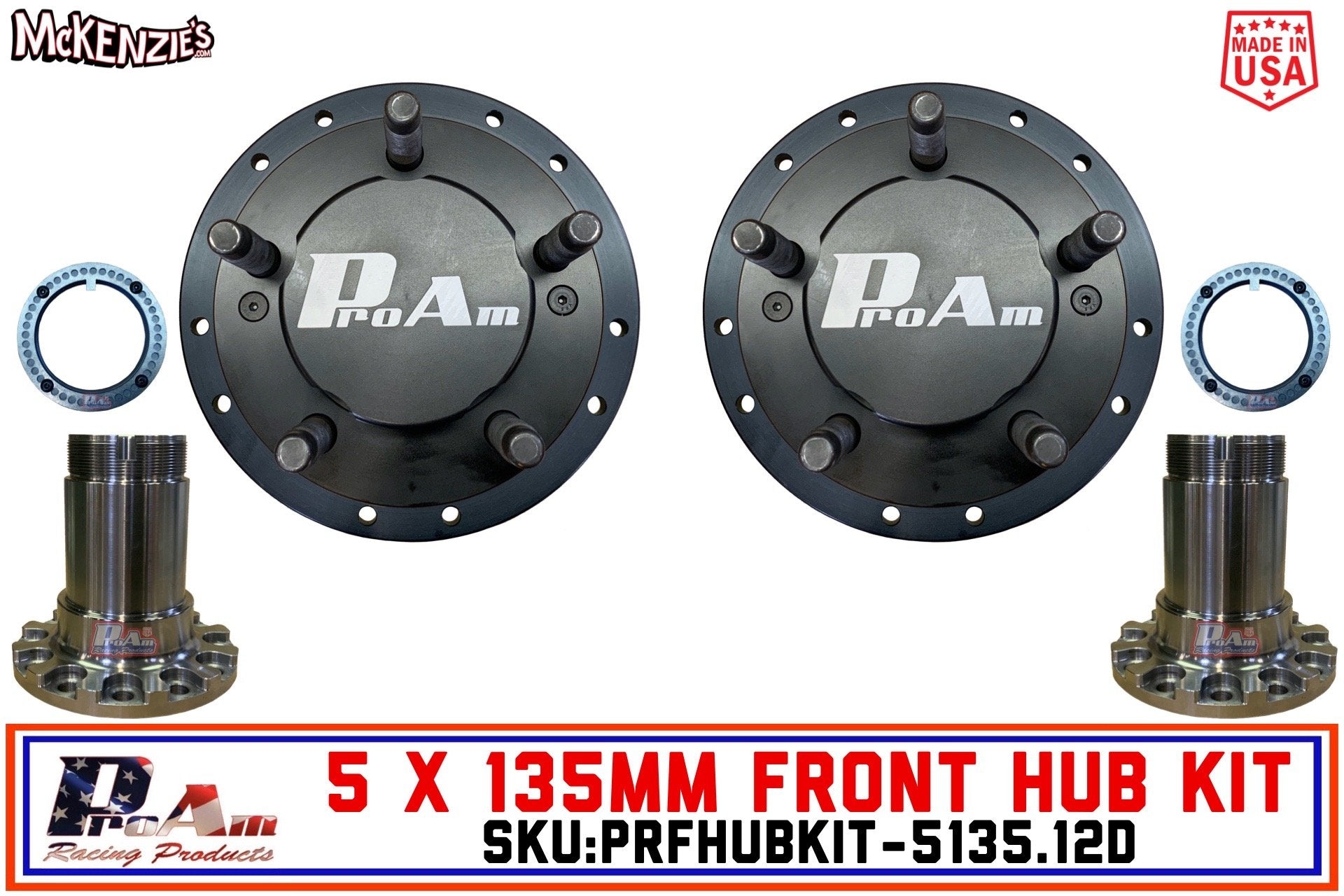

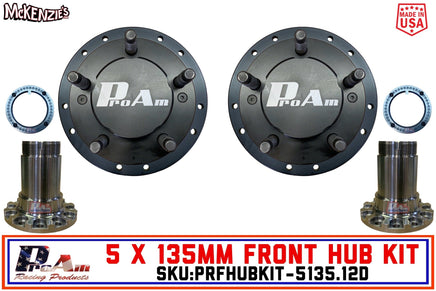

ProAm 5 on 135mm Front Prerunner Truck Hubs | 12-Bolt DANA Snouts | IronMan Series

ProAm Racing IronMan Series Prerunner Truck Hubs. Built for Mild to Wild Prerunners, the STANDARD NON-HD kit is designed for use on vehicles with up to 17" wheels on 35" tires.

SKU: IRM-PRFHUBKIT-5135.12D

Kit Features:

• 5 on 135mm lug pattern
• 5/8-18 Studs

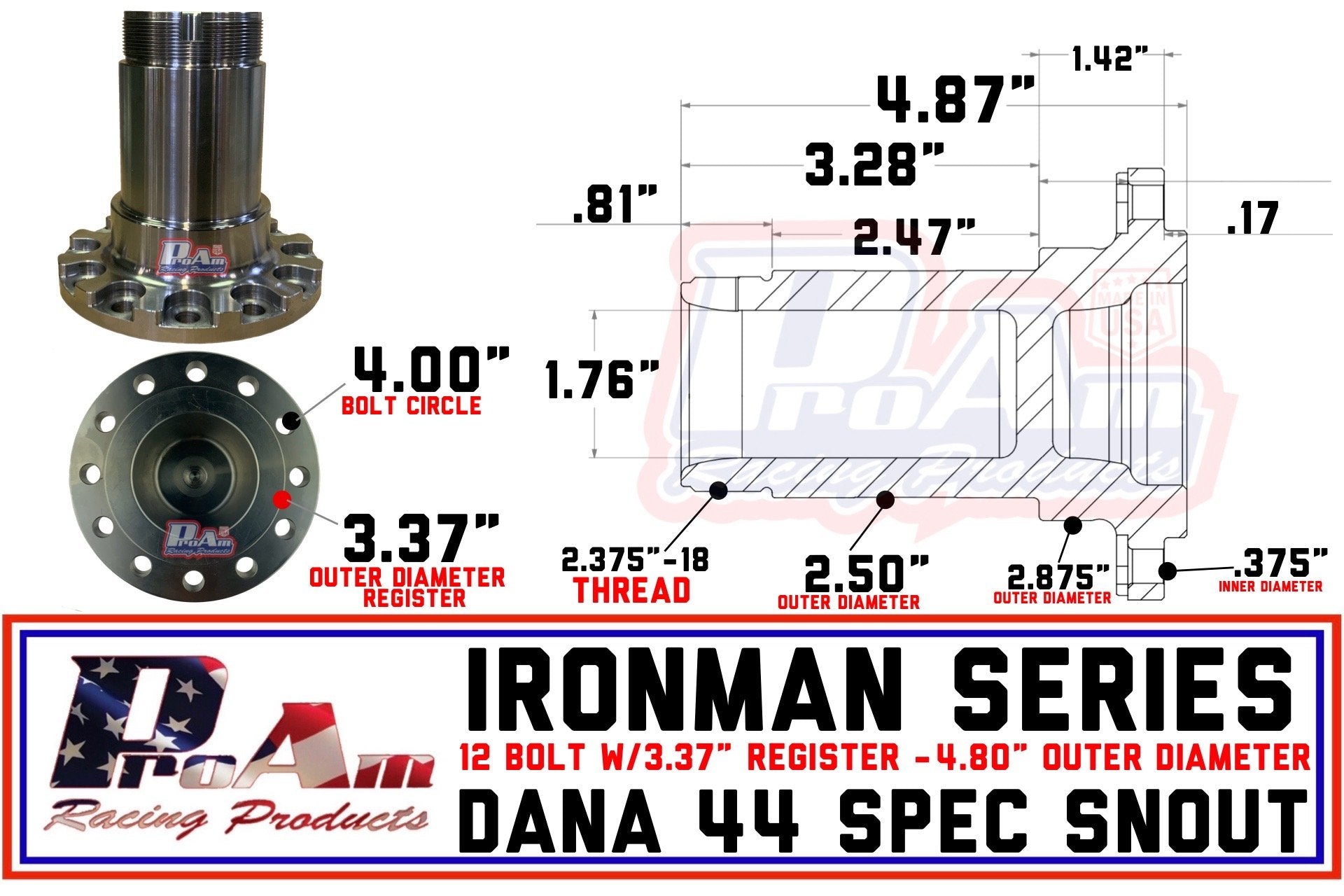

• 2.50" ProAm, IronMan DANA Spec Snouts & locking snout nuts
• Hubs, & adapter plates manufactured from Aerospace quality Aluminum
• Hubs, & adapter plates Brilliant Black hard anodized finish

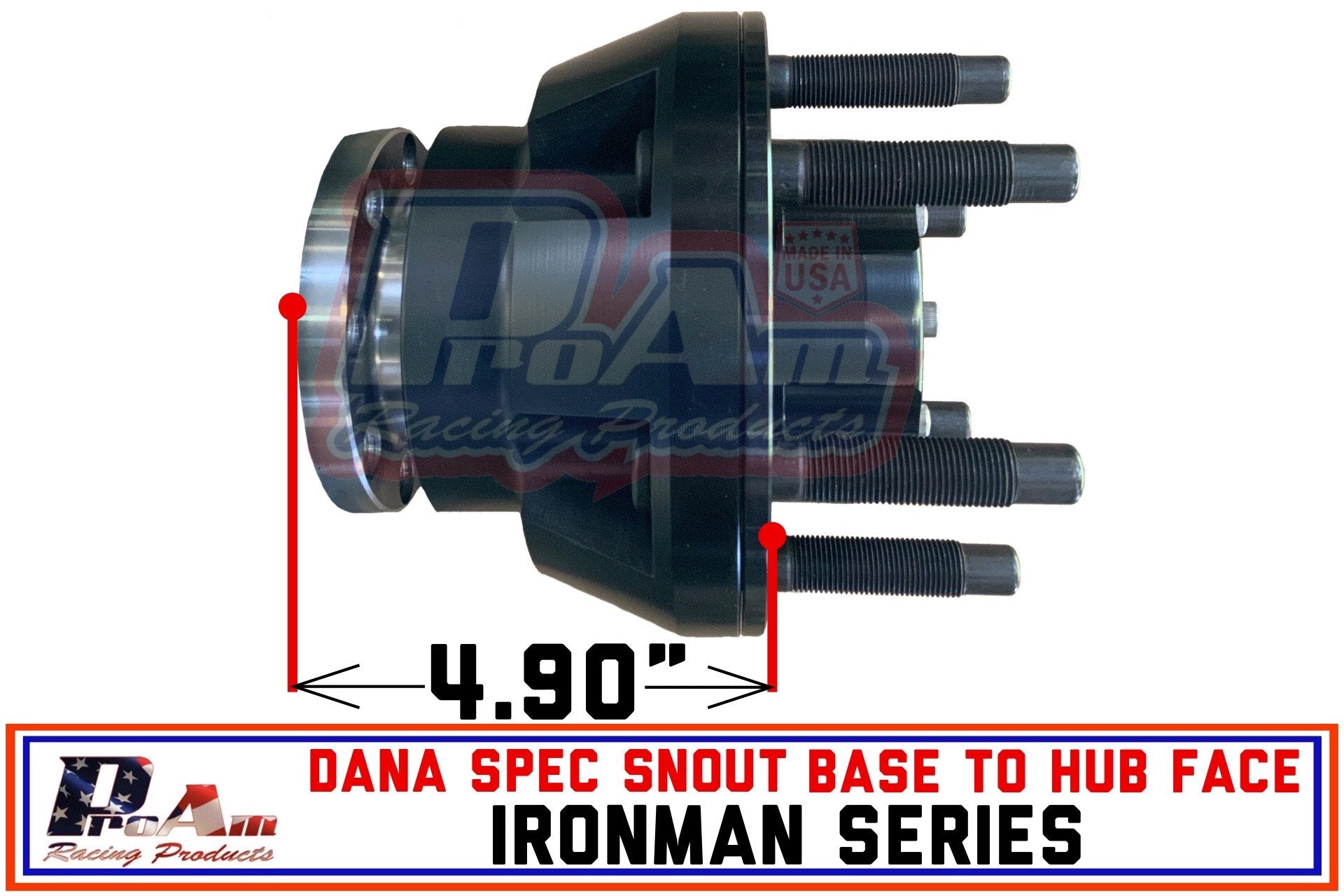

• 4.90" Snout face to wheel face

Kit Includes:

• IRM-PRFHUB5135-1 (QTY 2x) | 5 on 135mm Billet Hub
• IRM-PRFHUB5XX-2 (QTY 2x) | Rotor Adapter Hat
• IRM-PRFHUB5315-2a (QTY 10x) |Rotor Adapter Hardware
• IRM-PRFHUB5315-4 (QTY 2x) | 5 on 135mm Front Hub Cap
• IRM-PRF/RHUB-4a (QTY 2x) | 5 on 135mm Front Hub Cap O-Ring
• IRM-PRF/RHUB-4b (QTY 4x) | 5 on 135mm Front Hub Cap 1/4-28x.625" FHCS
• IRM-PRFHUB-4a (QTY 2x) | 5 on 135mm Front Hub Cap O-Ring
• IRM-PRF/RHUB-7 (QTY 10x) | 5/8-18 PRM Spec Studs
• IRM-PRF/RHUB-12 (QTY 2x) | 2.50" ID PRM Spec Crush Sleeves
• BRG-L610510 (QTY 4x) | 2.50" ProAm Spec Bearing Race
• BRG-L610549 (QTY 4x) | 2.50" ProAm Spec Bearing
• BRG-29872 (QTY 2x) | 2.50" ProAm Spec Seal
• IRM-PRFS2500L-12D (QTY 1x) | 2.50" ProAm IronMan DANA Spec 12-bolt L/H Snout
• PRM-TT2500SNLKIT (QTY 1x) | 2.50" ProAm L/H Snout Nut, Lock Washer kit
• IRM-PRFS2500R-12D (QTY 1x) | 2.50" ProAm IronMan DANA Spec 12-bolt R/H Snout
• PRM-TT2500SNRKIT (QTY 1x) | 2.50" ProAm R/H Snout Nut, Lock Washer kit

Brake Rotor Options

• 12" x .810" Rotors - Gas Grooved, Vented ProAm Spec Rotors (15" Wheels)

• 13.50" x 1.25" Rotors - HD Thick Plate, Vented ProAm Spec Rotors (17" CAST Wheel Package. These rotors clear the wheels when they bend!!)
• 14.00" x 1.25" Rotors - Gas Grooved, Vented ProAm Spec Rotors (17" FORGED Wheel Package. Maximum Rotor OD for Maximum Brake Performance)
• >COMPARISON BETWEEN HD & TT ROTOR HERE<

Stage Options

• STAGE 1: ProAm 6993N IronMan Caliper Package on 12" Rotors
• STAGE 2: ProAm 6993R Pro Series Caliper Package on 12" Rotors
• STAGE 3: ProAm 9996N IronMan Caliper Package (COMING SOON, TBA!!)
• STAGE 4: ProAm 9996R Pro Series Caliper Package on 13.50" HD Rotors
• STAGE 5: ProAm 9996R Pro Series Caliper Package on 14" TT Rotors
• **ALL STAGES COME WITH PROAM SPEC BRAKE PADS & ADDITIONAL HARDWARE FOR ROTOR & CALIPER MOUNTING.**
