Peterson Scavenge Filters


SKU: 09-0401

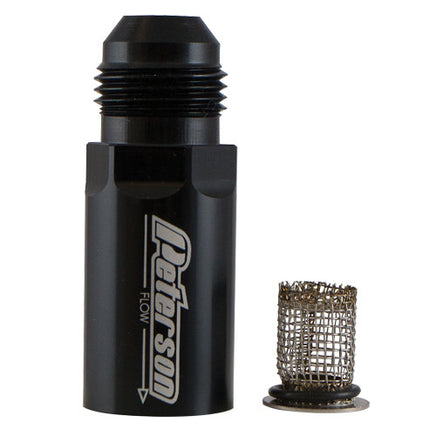

We offer several different scavenge filters to us on the suction lines of your oil pump. They will help protect your oil pump in the case of catastropic engine failure. These filters feature a coarse stainless screen element that still allows the pump to not have a restriction in flow.

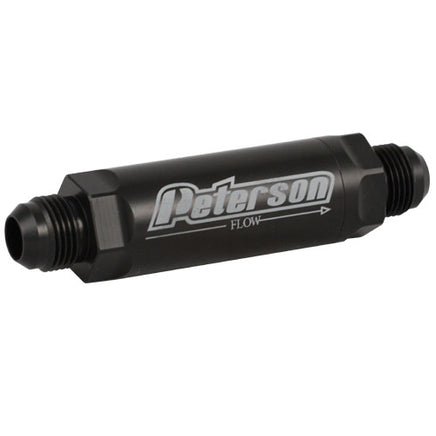

• Inline Filters - Can be placed anywhere in the line between the pan and pump.

  • 6061 T6 billet aluminum
  • CNC machined for precision
  • Anodized for durability and fluid compatibility
  • Stainless steel screen
  • Plumbing Diagram
Part # Description Length Width Weight
PET-09-0401 -8 AN Male 4.25"/108 mm 1.3"/33 mm 3.7 oz
PET-09-0402 -10 AN Male 5.5"/139.7 mm 1.3"/33 mm 4.6 oz
PET-09-0403 -12 AN Male 5.5"/139.7 1.3"/33 mm 5.1 oz
PET-09-0405 -16 AN Male 6.5"/165.1 mm 1.5"/38.1 mm 6.9 oz
