FK Bearing JMXL6T | Male L/H Heim 3/8-24 Thread x .375" Ball

JMXL6T
JMXL6T

FK Bearing

$19.99
SKU: JMXL6T

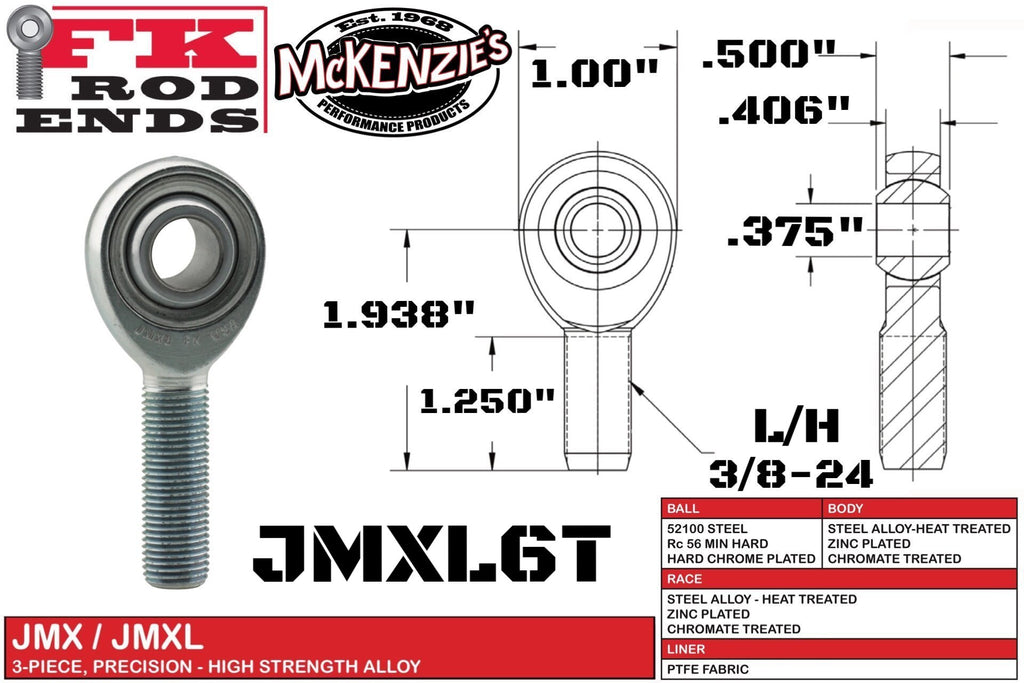

  • 3-Piece Construction

  • PTFE Liner

  • ULT Static Load Rating: 9,550 lbs

  • Weight: .11 lbs

  • MADE IN USA

MATERIALS
BALL
BODY
RACE
52100 STEEL
STEEL ALLOY, HEAT TREATED
STEEL ALLOY, HEAT TREATED
Rc 56 MIN. HARD
ZINC PLATED
ZINC PLATED
HARD CHROME PLATED
CHROMATE TREATED
CHROMATE TREATED
MALE ROD
ENDS
B
DIA.
D
DIA.
W
WIDTH
T
WIDTH
BALL
DIA.
A
LGTH
N
THD.
C
LGTH
a°
MIS
ANGLE
ULT.
STATIC
RADIAL
LOAD (lbs.)
APPROX.
WEIGHT
(lbs.)
RIGHT
HAND PART NO.
LEFT
HAND PART NO.
+.0015 -.0005
+.010 -.010
+.000 -.005
+.005 -.005
REF.
+.015 -.015
UNF 3A
+.062 -.031
REF.
JMX3
JMXL3
.1900
.625
.312
.250
.437
1.250
10-32
.750
13
2,855
.03
JMX4
JMXL4
.2500
.750
.375
.281
.500
1.562
1/4-28
1.000
16
5,262
.04
JMX5
JMXL5
.3125
.875
.437
.344
.625
1.875
5/16-24
1.250
14
7,640
.07
JMX6
JMXL6
.3750
1.000
.500
.406
.719
1.938
3/8-24
1.250
12
9,550
.11
JMX7
JMXL7
.4375
1.125
.562
.437
.812
2.125
7/16-20
1.375
14
10,290
.16
JMX8
JMXL8
.5000
1.312
.625
.500
.937
2.438
1/2-20
1.500
12
16,242
.25
JMX10
JMXL10
.6250
1.500
.750
.562
1.125
2.625
5/8-18
1.625
16
17,959
.38
JMX12
JMXL12
.7500
1.750
.875
.687
1.312
2.875
3/4-16
1.750
14
28,090
.60
JMX14
JMXL14
.8750
2.000
.875
.687
1.312
3.375
7/8-14
1.875
12
55,690
.91
JMX14T-770
JMXL14T-770
.8750
2.000
.875
.770
1.375
3.375
7/8-14
1.875
12
45,051
.91
JMX16**
JMXL16
1.0000
2.950
1.375
1.015
1.875
4.500
1-1/4-12
2.500
17
107,182
2.736
JMX16-1**
JMXL16-1
1.0000
2.950
1.375
1.015
1.875
4.500
1-14
2.500
17
107,182
2.464
MALE ROD END LOAD RATINGS BASED ON NO LUBRICATION FITTING.
** TOLERANCE VARIATION: "D", "A" ARE +/- .020
