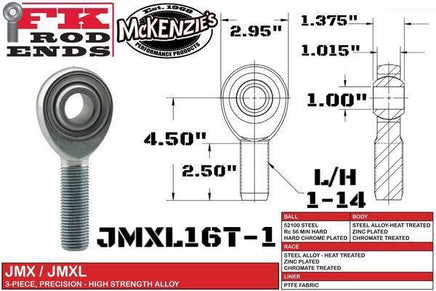

FK Bearing JMXL16T-1 | Male L/H Heim 1-14 Thread x 1.00" Ball
-
3-Piece Construction
-
PTFE Liner
-
ULT Static Load Rating:107,182 lbs
-
Weight:2.46
-
MADE IN USA
MATERIALS
|
|||||
BALL
|
BODY
|
RACE
|
|||
52100 STEEL
|
STEEL ALLOY, HEAT TREATED
|
STEEL ALLOY, HEAT TREATED
|
|||
Rc 56 MIN. HARD
|
ZINC PLATED
|
ZINC PLATED
|
|||
HARD CHROME PLATED
|
CHROMATE TREATED
|
CHROMATE TREATED
|
MALE ROD
ENDS
|
B
DIA.
|
D
DIA.
|
W
WIDTH
|
T
WIDTH
|
BALL
DIA.
|
A
LGTH
|
N
THD.
|
C
LGTH
|
a°
MIS
ANGLE
|
ULT.
STATIC
RADIAL
LOAD (lbs.)
|
APPROX.
WEIGHT
(lbs.)
|
|
RIGHT
HAND PART NO.
|
LEFT
HAND PART NO.
|
|||||||||||
+.0015 -.0005
|
+.010 -.010
|
+.000 -.005
|
+.005 -.005
|
REF.
|
+.015 -.015
|
UNF 3A
|
+.062 -.031
|
REF.
|
||||
JMX3
|
JMXL3
|
.1900
|
.625
|
.312
|
.250
|
.437
|
1.250
|
10-32
|
.750
|
13
|
2,855
|
.03
|
JMX4
|
JMXL4
|
.2500
|
.750
|
.375
|
.281
|
.500
|
1.562
|
1/4-28
|
1.000
|
16
|
5,262
|
.04
|
JMX5
|
JMXL5
|
.3125
|
.875
|
.437
|
.344
|
.625
|
1.875
|
5/16-24
|
1.250
|
14
|
7,640
|
.07
|
JMX6
|
JMXL6
|
.3750
|
1.000
|
.500
|
.406
|
.719
|
1.938
|
3/8-24
|
1.250
|
12
|
9,550
|
.11
|
JMX7
|
JMXL7
|
.4375
|
1.125
|
.562
|
.437
|
.812
|
2.125
|
7/16-20
|
1.375
|
14
|
10,290
|
.16
|
JMX8
|
JMXL8
|
.5000
|
1.312
|
.625
|
.500
|
.937
|
2.438
|
1/2-20
|
1.500
|
12
|
16,242
|
.25
|
JMX10
|
JMXL10
|
.6250
|
1.500
|
.750
|
.562
|
1.125
|
2.625
|
5/8-18
|
1.625
|
16
|
17,959
|
.38
|
JMX12
|
JMXL12
|
.7500
|
1.750
|
.875
|
.687
|
1.312
|
2.875
|
3/4-16
|
1.750
|
14
|
28,090
|
.60
|
JMX14
|
JMXL14
|
.8750
|
2.000
|
.875
|
.687
|
1.312
|
3.375
|
7/8-14
|
1.875
|
12
|
55,690
|
.91
|
JMX14T-770
|
JMXL14T-770
|
.8750
|
2.000
|
.875
|
.770
|
1.375
|
3.375
|
7/8-14
|
1.875
|
12
|
45,051
|
.91
|
JMX16**
|
JMXL16
|
1.0000
|
2.950
|
1.375
|
1.015
|
1.875
|
4.500
|
1-1/4-12
|
2.500
|
17
|
107,182
|
2.736
|
JMX16-1**
|
JMXL16-1
|
1.0000
|
2.950
|
1.375
|
1.015
|
1.875
|
4.500
|
1-14
|
2.500
|
17
|
107,182
|
2.464
|
MALE ROD END LOAD RATINGS BASED ON NO LUBRICATION FITTING.
** TOLERANCE VARIATION: "D", "A" ARE +/- .020
|
