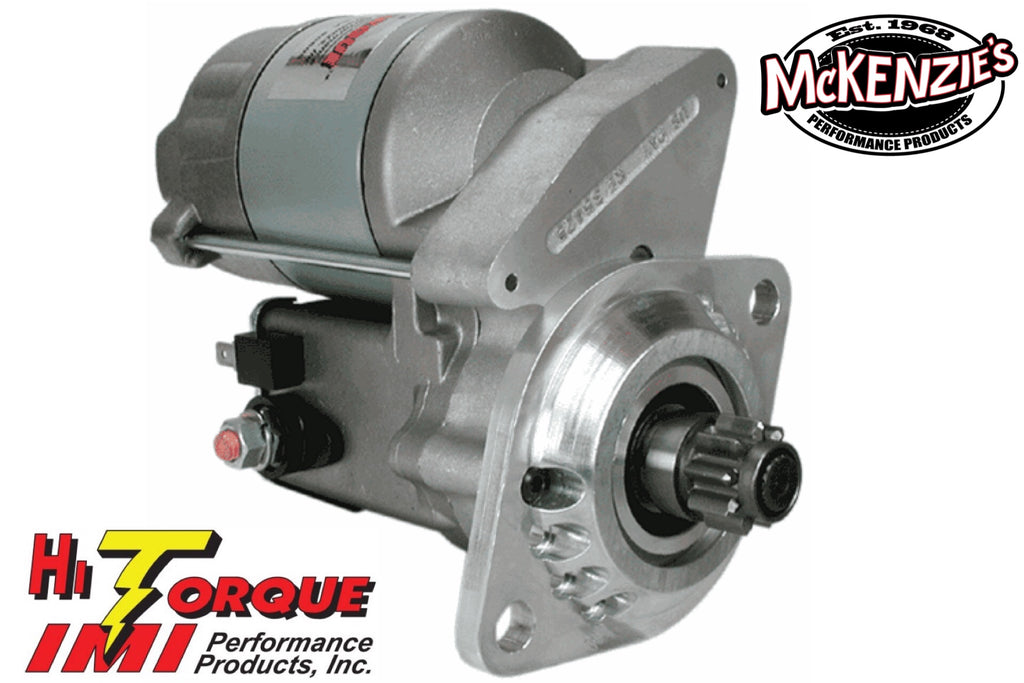

Hi-Torque Starter - IMI 101N - (Type 1 Mounting)
This unit is designed for a Volkswagen application using a type I transmission. This is the high output version of the IMI-101. This unit is specifically designed for engines using a conversion kit such as a Kennedy adapter or Mendeola transmission. This unit is similar to the IMI-104 (091 bellhousing unit) but has a shorter pinion depth.
- 9 Tooth smaller diameter pinion gear for the 130 tooth flywheel.
- Genuine Nippon Denso starter motor coupled to IMI patented design.
- Rotation CCW
- kW 1.4
- Gearing 4.44 to 1
- Rotatable Yes
- Voltage 12
Fitment confirmed on the following transaxles;
- Type 1 Swing Axle
- Type 1 IRS
- Type 2 - "002" bellhousing
- Albins 10" Gearbox with Type 1 bellhousing
- Mendeola MD Series
- Mendeola S4/S5 Series with type 1 bellhousing
- PBS S4/S5 Series with type 1 bellhousing
- Weddle HV-1
- Weddle HV-25
