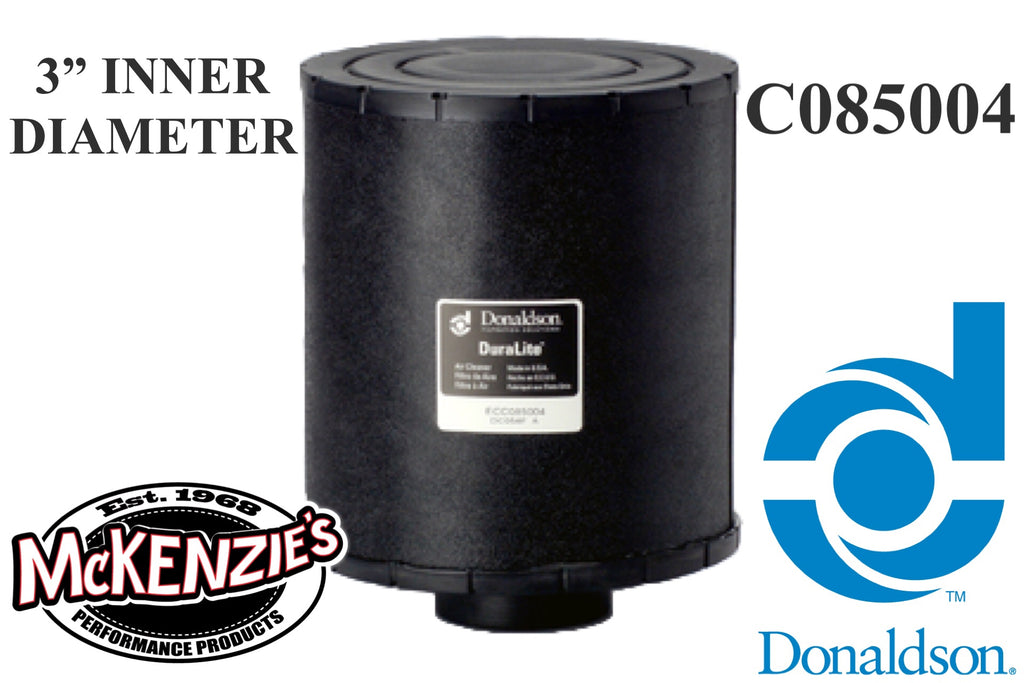

Donaldson 3.0" ID Clamp on Filter - C085004 Duralite Series
DONALDSON C085004
- Outlet Diameter - 3.00 inch (76.2 mm)
- Body Diameter Maximum - 8.50 inch (215.9 mm)
- Body Length - 9.50 inch (241.3 mm)
- Efficiency Test Std ISO 5011
- Rated Flow LR - 170 cfm (4.8 m³/min)
- Rated Flow MR - 205 cfm (5.8 m³/min)
- Rated Flow HR - 244 cfm (6.9 m³/min)
- Restriction LR - 4.02 inch H2O (102 mm H2O)
- Restriction MR - 5.98 inch H2O (152 mm H2O)
- Restriction HR - 7.99 inch H2O (203 mm H2O)
- Family: ECC
- Type: Primary
- Style: Round
- Brand: DuraLite™
- Media Type: Cellulose
