This continuous duty ‘street warrior’ supports big horsepower and maintains the drivability necessary for a true high performance street car. Designed for high horsepower street/strip applications, EFI or Carbureted, it features our ‘dual chamber’ pumping mechanism.
Features:

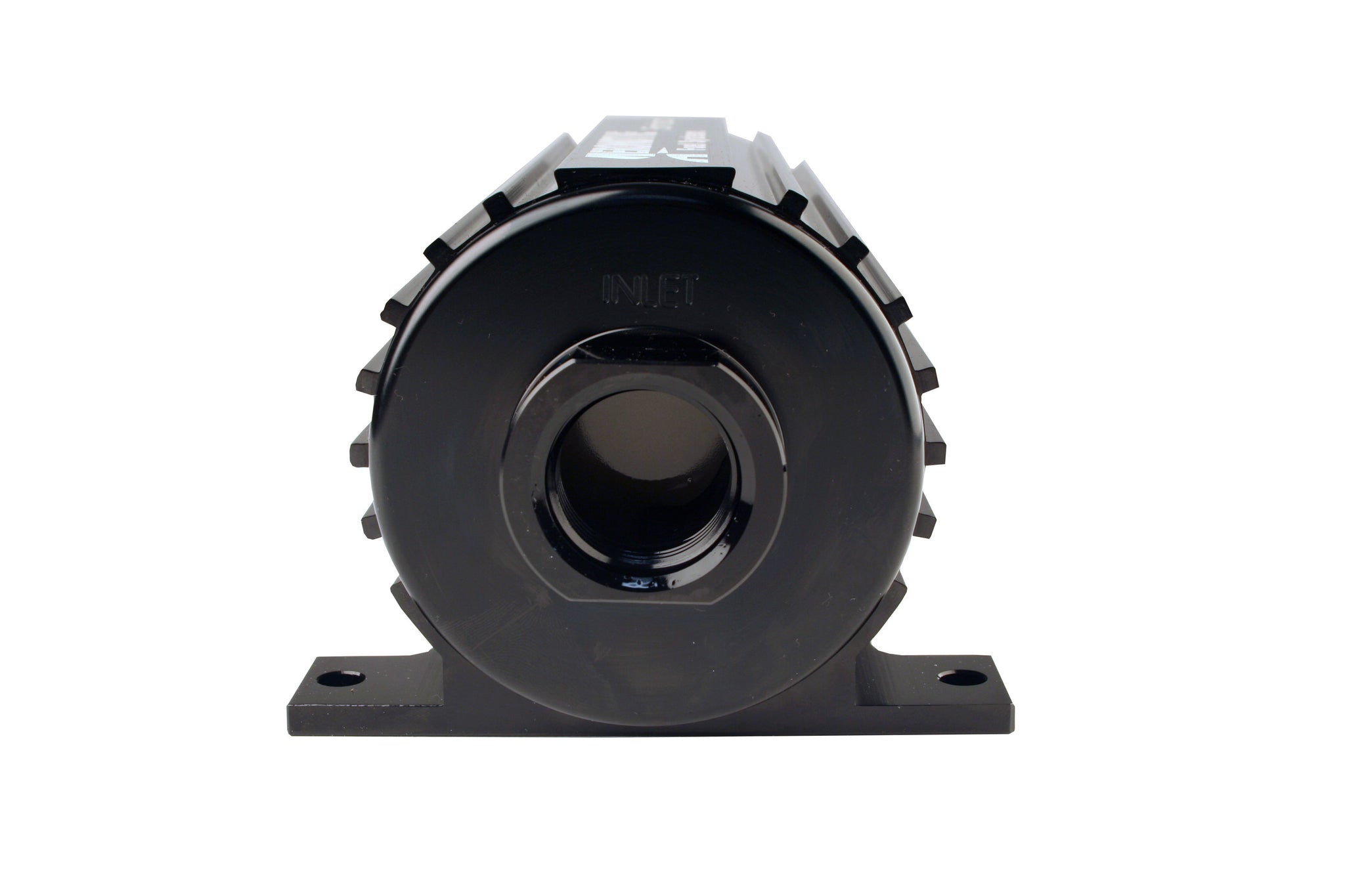

- ORB-12 inlet port and ORB-10 outlet port.>INLET FITTINGS / OUTLET FITTINGS<

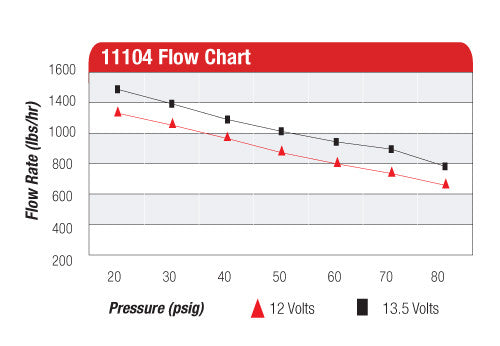

- 25% more flow at pressure than our A1000 Fuel Pump.
- Dimensions > 8.5 x 4.75 x 4 in
- Fully submersible for custom, in-tank placement.
- A1000 Regulators > P/N 13101 or P/N 13109.
- Marine A1000 Regulators > EFI P/N 13114, Carbureted P/N 13207
- INSTALLATION INSTRUCTIONS
- * This product is not compatible for use with diesel fuel.
Fuel Injected Engines:
- up to 1900 HP – naturally aspirated
- up to 1400 HP – forced air induction
Carbureted Engines:
- up to 2300 HP – naturally aspirated
- up to 1700 HP – forced air induction
Marine A1000:
- Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
- Qualified to run continuously for over 2,000 hours.
- Full, 2 year, factory direct warranty.
