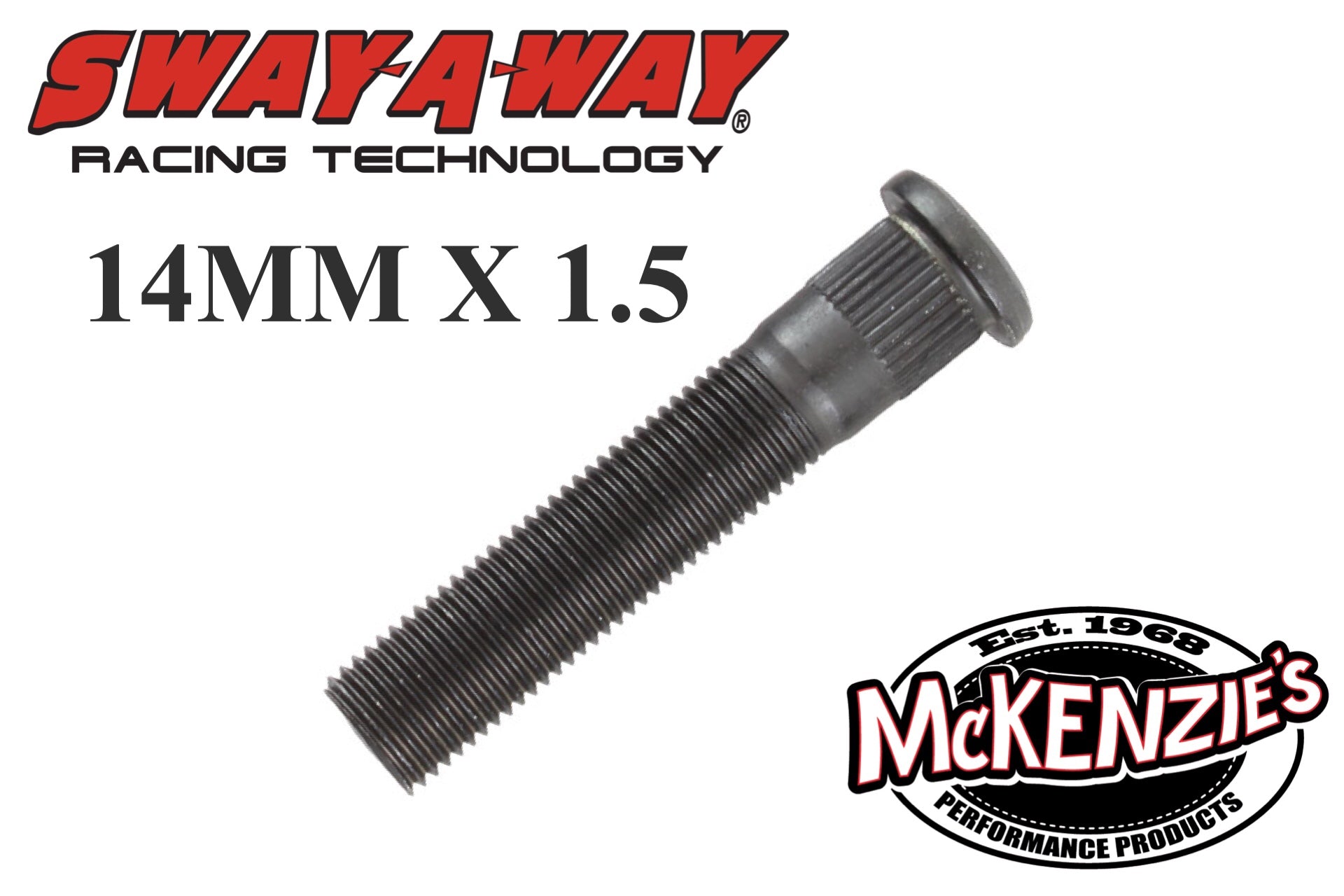

Sway-A-Way’s Volkswagen/Porsche/Off Road Wheel Studs are high-quality replacements designed to withstand the demands of off-road and street racing. All studs are manufactured from aircraft grade alloy steel, cold headed and all threads are rolled for maximum strength. They are then heat treated and finished with a Black Zinc finish. These wheel studs do not have a nut starter incorporated into the stud. Stud length is measured from under the head to the end of the thread.
These studs press into the drum or hub. Installation requires a hole drilled and reamed to .562” diameter. The area where the stud head sits should be spot faced 13/16″ diameter so that the seat is flat and perpendicular to the stud.
- Material: Medium Carbon Alloy Steel
- Processes: Quenched & Tempered – Cold-Formed
- Coating: Black Zinc
- Tensile Strength: 150,000 psi

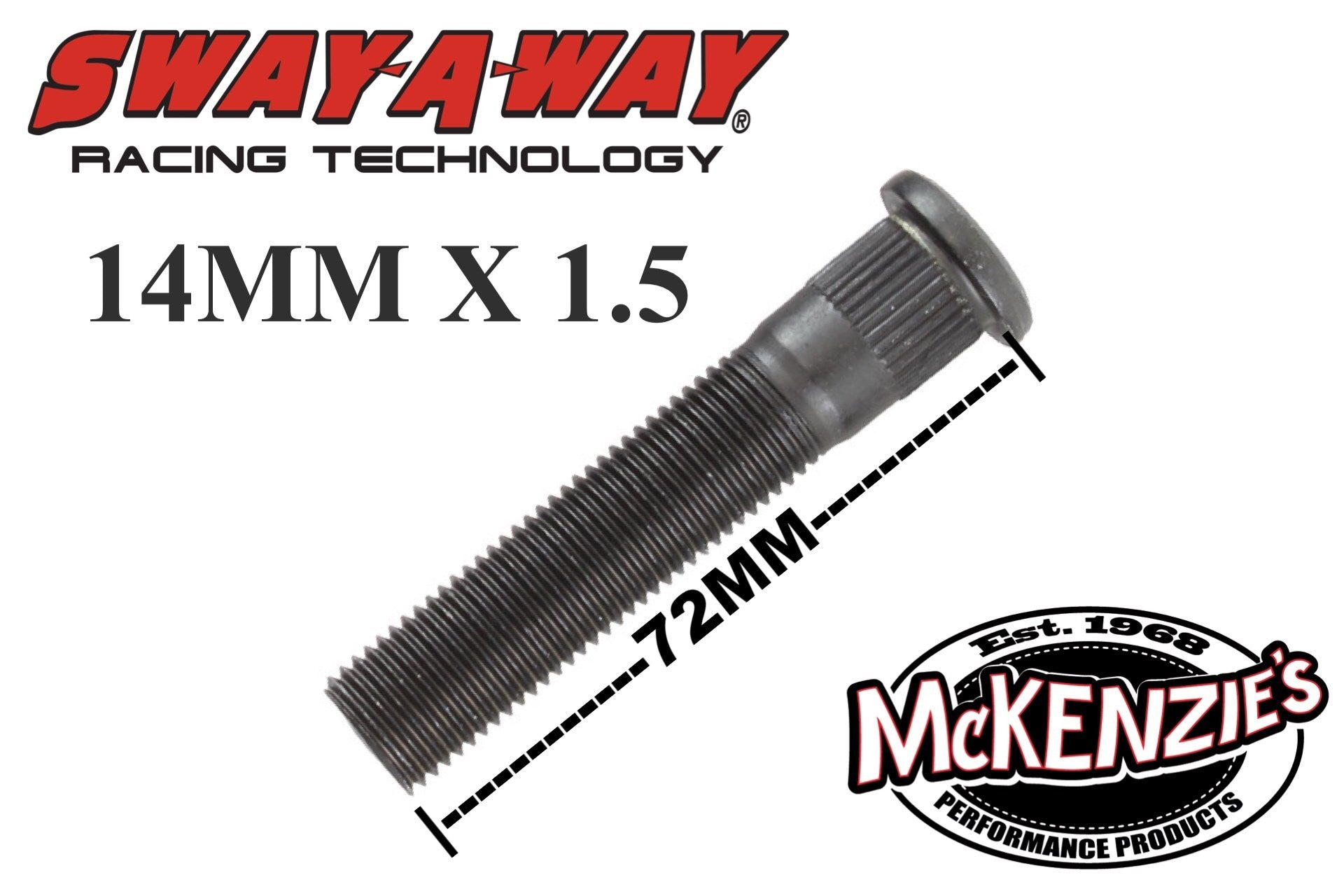

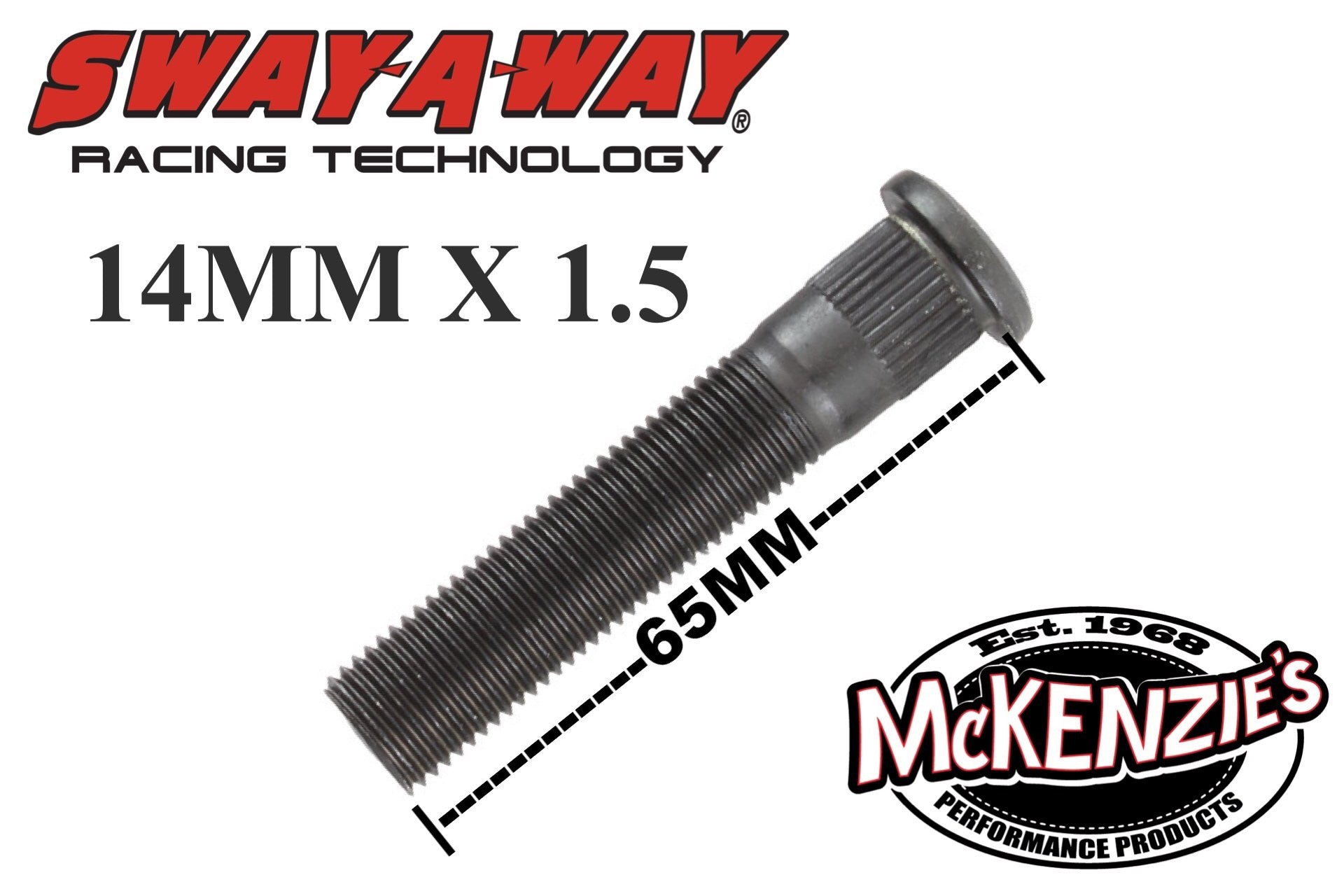

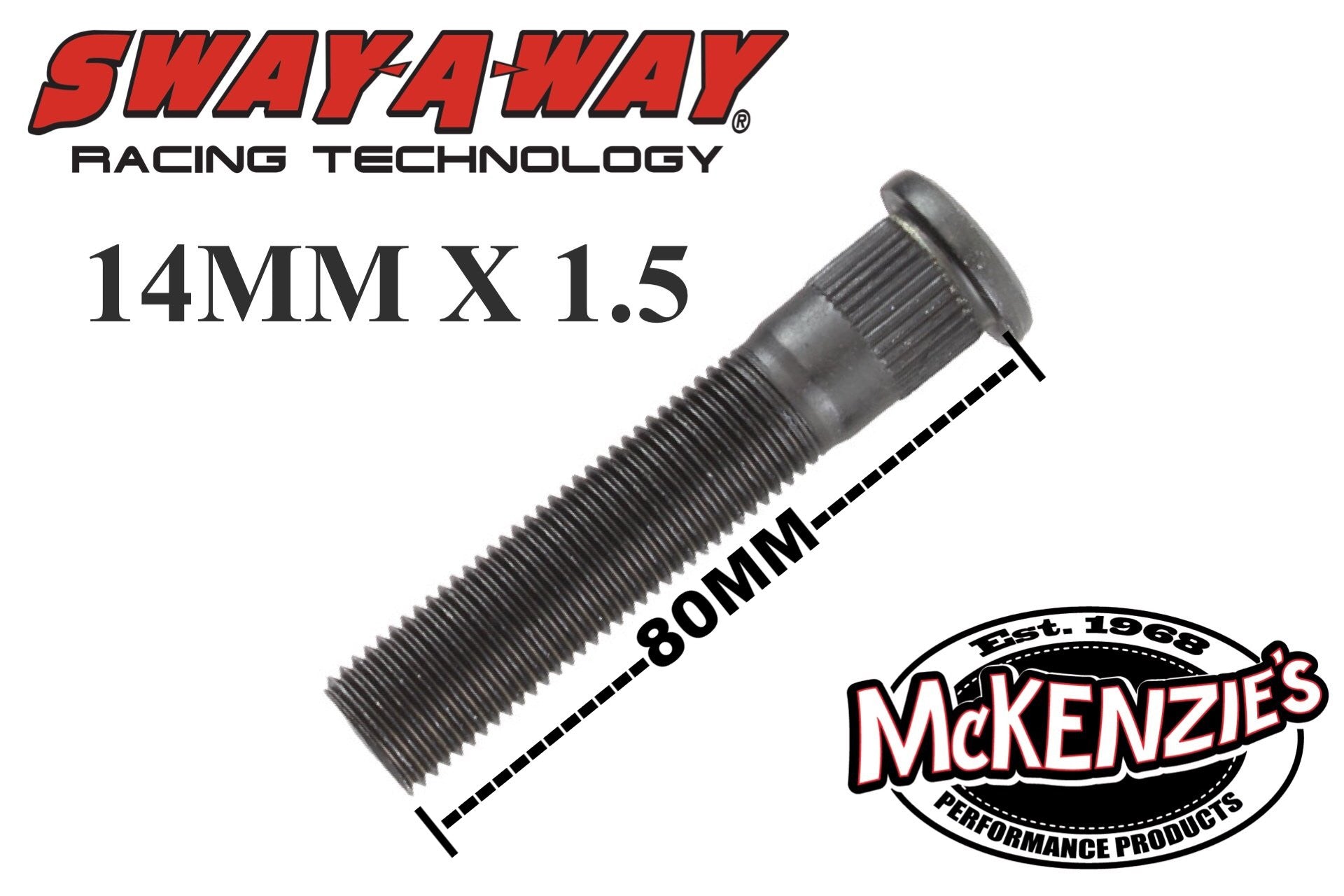

- Stud length is measured from under the head to the end of the thread.
