-12 Stainless Steel Braided CPE Race Hose | .688" ID - .928" OD | XRP 300012

XRP

$13.98
SKU: 300012

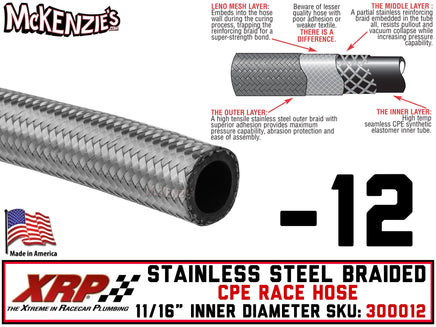

XRP -12 Stainless Steel CPE Race Hose. Stainless Steel outer braid provides durability & heat resistance. Scientific elastomer, CPE (Chlorinated Polyethylene) inner tube provides broad race fluid compatibility. This hose is known for its superior outer braid adhesion, making it easy to assemble. Beware of lesser quality hose with poor adhesion or weaker textile inner braid! MADE IN USA!

SKU: 300012 > SOLD PER FOOT/CUT TO LENGTH

  • .688" Inner Diameter
  • .928" Outer Diameter
  • 1000 psi Max Operating Pressure
  • 4000 psi Burst Pressure
  • Weight: .28 lbs per foot
  • 4.50" Minimum Bend Radius
  • Applications Approved - Gasoline, Fuel, Lubricating Oils, Air, & Water
  • -40 Degree to +300 Degree Temperature Range
  • Hose Flow Capacities & Flow Chart
  • Installation Instructions

Direct Replacement/Substitute for:

  • XRP XR-31 Series Hose SKU: 311200
  • Fragola 30000 Series Hose SKU:700012

FOR USE WITH THESE HOSE ENDS:

-12 Triple Sealed Hose Ends



 **Stainless steel braided CPE hose does not meet the SAE marine specifications for Coast Guard approval and should not be used for marine applications other than racing. This hose is not for power steering, hydraulic impulse applications or compatible with brake fluid**
