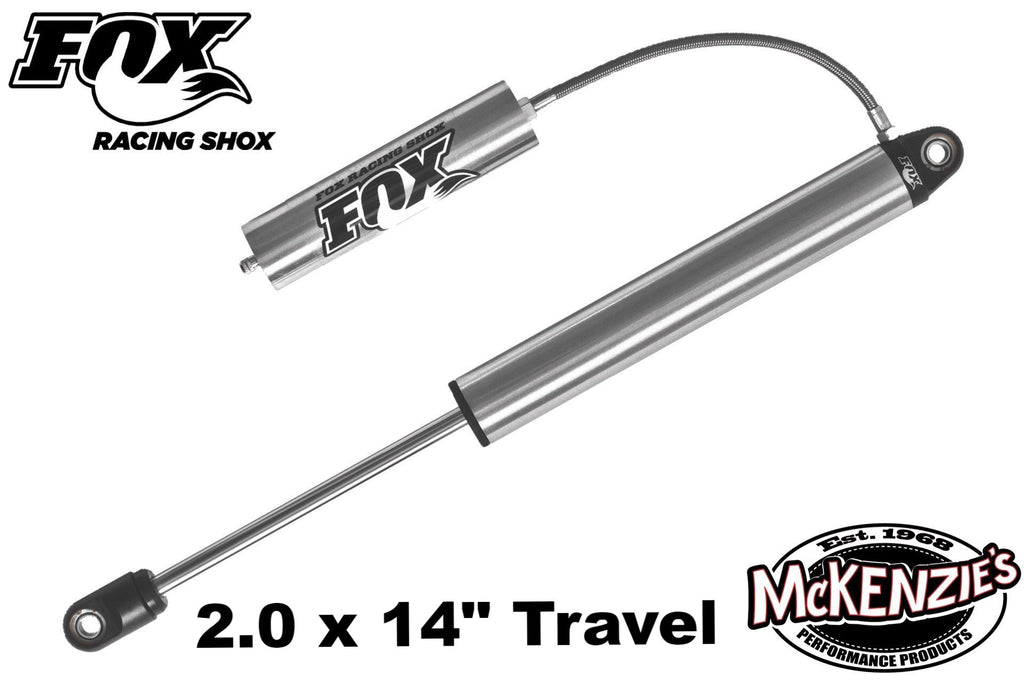

FOX 2.0 Factory Race Series Smooth Body Remote (7 Travel Options)

Fox Shox

$334.95
SKU: 980-02-035

FOX smooth body shocks are available in a broad range of sizes and that are all specifically valved for your application. FOX has the perfect shock for your project with multiple mounting options to choose from. Our smooth body shocks provide years of unparalleled performance at a competitive price.

Body

  • Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies

Components

  • Black anodized 6061-T6 billet aluminum

Shaft

  • 5/8" hard chrome plated heat treated alloy steel

Piston

  • Race-developed high-flow piston design

Valving

  • Proprietary deburred valve shims

Seals

  • Redundant sealing pack system main seal, wiper seal, scraper seal
  • Optional high temperature Viton seals

Oil

  • Specially formulated for ultimate performance at variable temperatures

Reservoir

  • Remote

Mounting

  • Lined, heat-treated, alloy steel spherical bearings
  • 1/2" bolt x 1 1/4" wide
  • Optional spacer x 1 1/2" wide
Travel Extended Compressed Valving Shaft Note Part Number
5" 15.77" 10.77" 30/90 5/8" 980-02-029
6.5" 18.8" 12.3" 30/90 5/8" 980-02-030
8.5" 22.8" 14.3" 30/90 5/8" 980-02-031
10" 26.1" 16.1" 30/90 5/8" 980-02-032
11" 28.1" 17.1" 30/90 5/8" 980-02-039
12" 31.1" 19.1" 30/90 5/8" 980-02-034
14" 35.1" 21.1" 30/90 5/8" 980-02-035



EXPLODED VIEW
