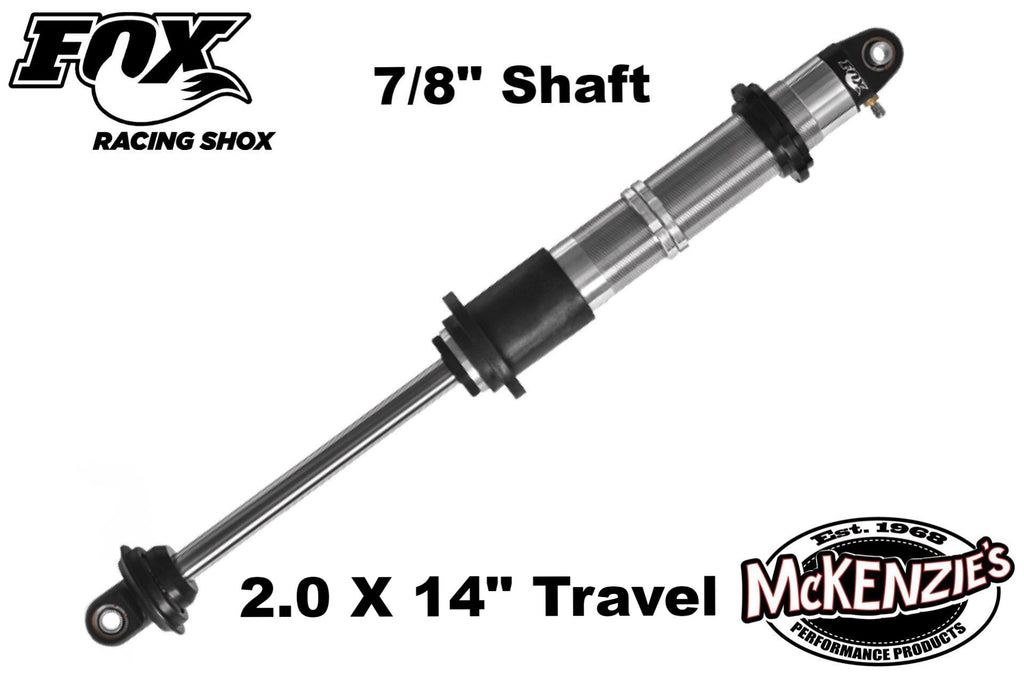

FOX 980-02-011 | 2.0 X 14" Travel Coil-Over Emulsion - 7/8 Shaft | Factory Series

Fox Shox

$409.95
SKU: 980-02-011

From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year.

FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.

Body

  • Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies

Components

  • Black anodized 6061-T6 billet aluminum

Shaft

  • 7/8" hard chrome plated stainless steel 17-4 H900

Piston

  • Race-developed high-flow piston design

Valving

  • Proprietary deburred valve shims

Seals

  • Redundant sealing pack system main seal, wiper seal, scraper seal
  • Optional high temperature Viton seals

Oil

  • FOX formulated for ultimate performance at variable temperatures

Reservoir

  • Emulsion

Mounting

  • Lined, heat-treated, alloy steel spherical bearings 1/2" bolt x 1 1/4" wide
Travel
Extended
Compressed
Valving
Shaft
Note
Part Number
3.5"
13.1"
9.6"
40/60
5/8"
980-02-041
5"
16.42"
11.42"
40/60
5/8"
980-02-000
6.5"
19.35"
12.85"
40/60
5/8"
980-02-001
8.5"
23.35"
14.85"
40/60
5/8"
980-02-002
10"
26.65"
16.65"
40/60
5/8"
980-02-004
10"
26.1"
16.1"
50/70
7/8"
980-02-007
12"
31.1"
19.1"
50/70
7/8"
980-02-009
14"
35.1"
21.1"
50/70
7/8"
980-02-011
16"
40.1"
24.1"
50/70
7/8"
980-02-057
18"
44.1"
26.1"
50/70
7/8"
980-02-058



EXPLODED VIEW
